That’s a lot of material removal, very cool!
2 Likes
Thanks! My little 5hp Syil X7 can really get after it with a 1/2" roughing endmill. It took me a longer time than I’d like to admit to figure out the best way to machine this part efficiently. If only I had a 4th axis…
3 Likes
Awesome design!
Is your MTB yoke compatible with non-boost chain rings? Why non-boost? To provide a superior chain line in the harder of gears when using a boost rear end. Will definitely order for a future build it can clear a 32t non-boost ring
3 Likes

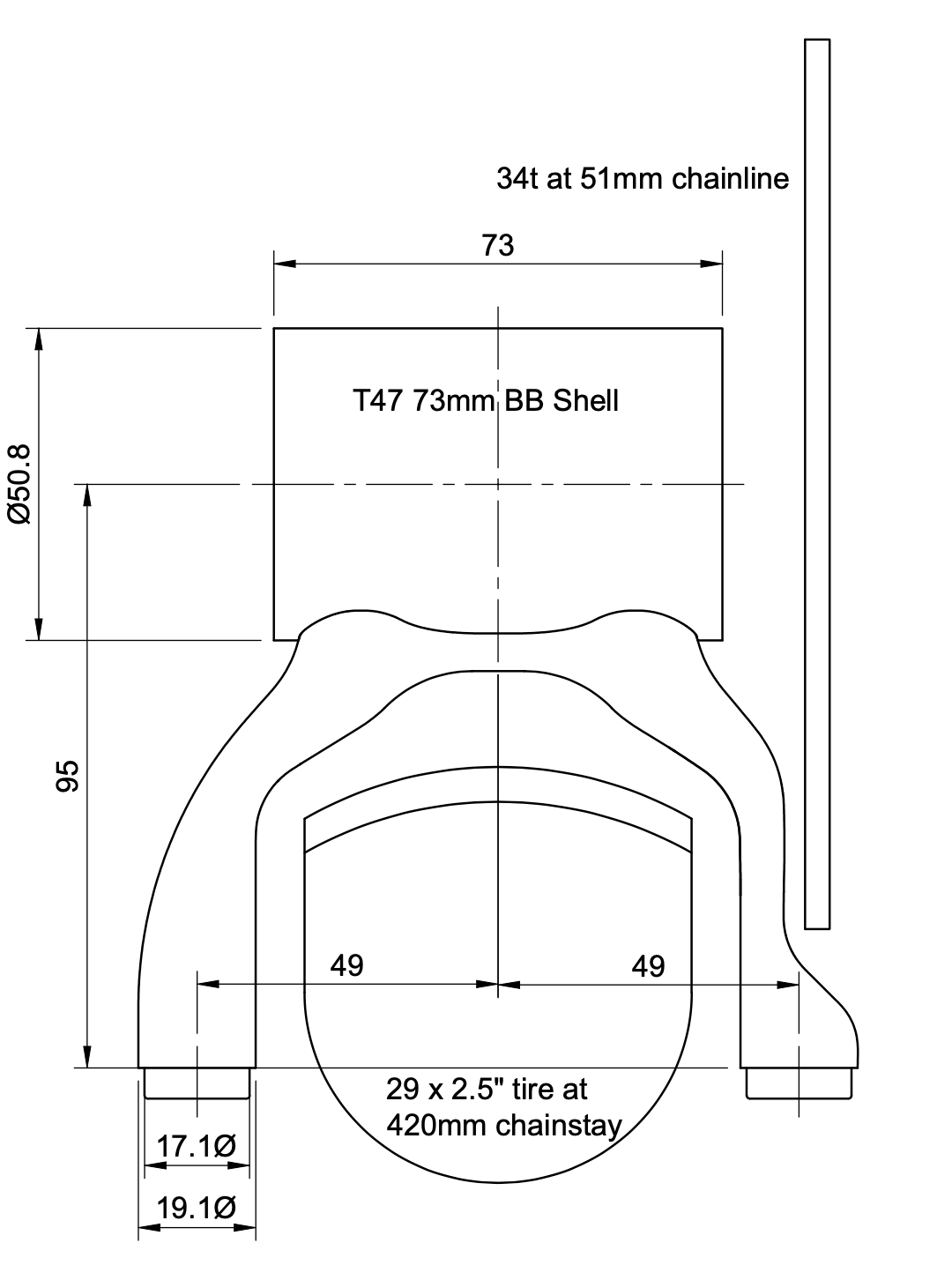

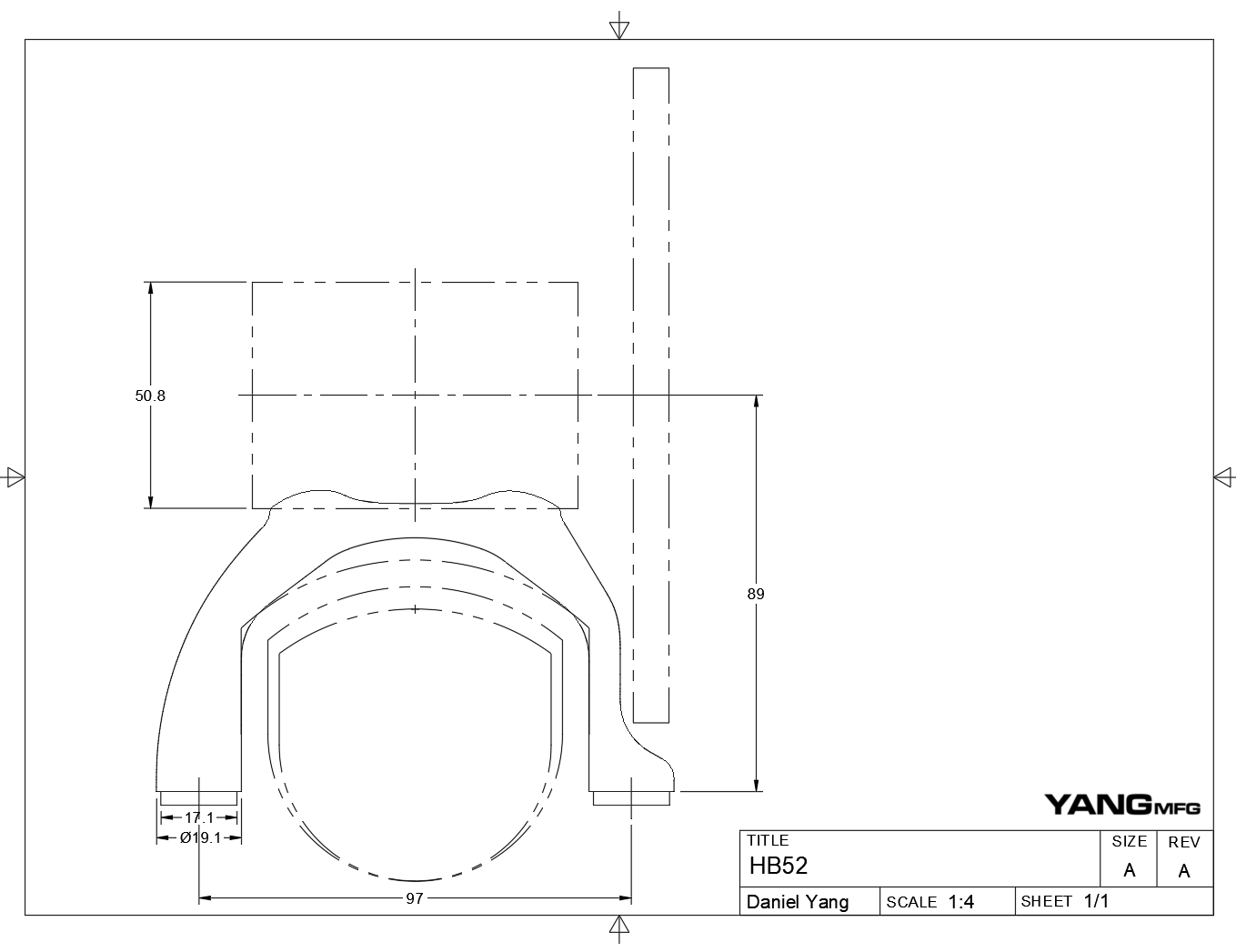

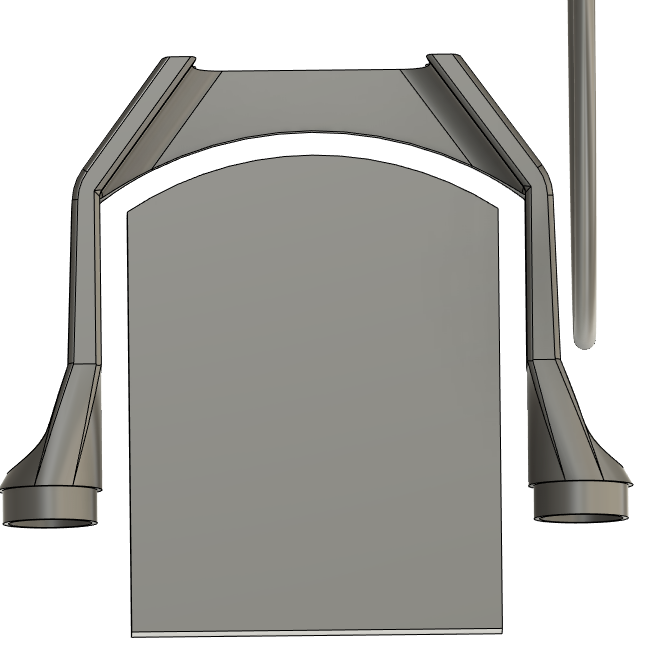

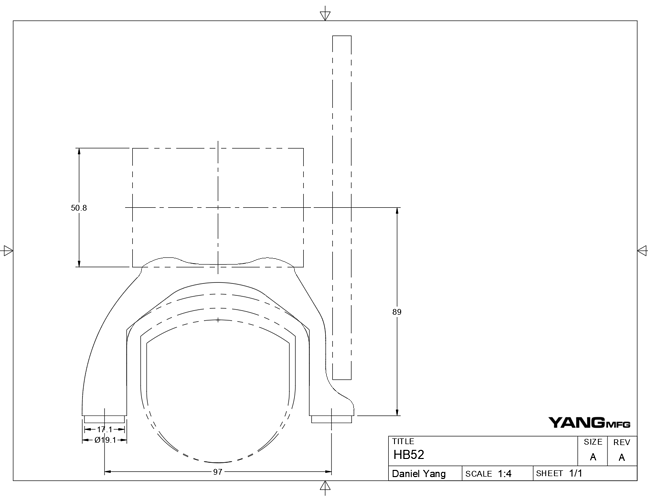

Hi Ben, non-boost 32t isn’t an issue. Here’s the mockup with a 32t (136.1mm diameter) with a 49mm (non-boost) chainline.
2 Likes

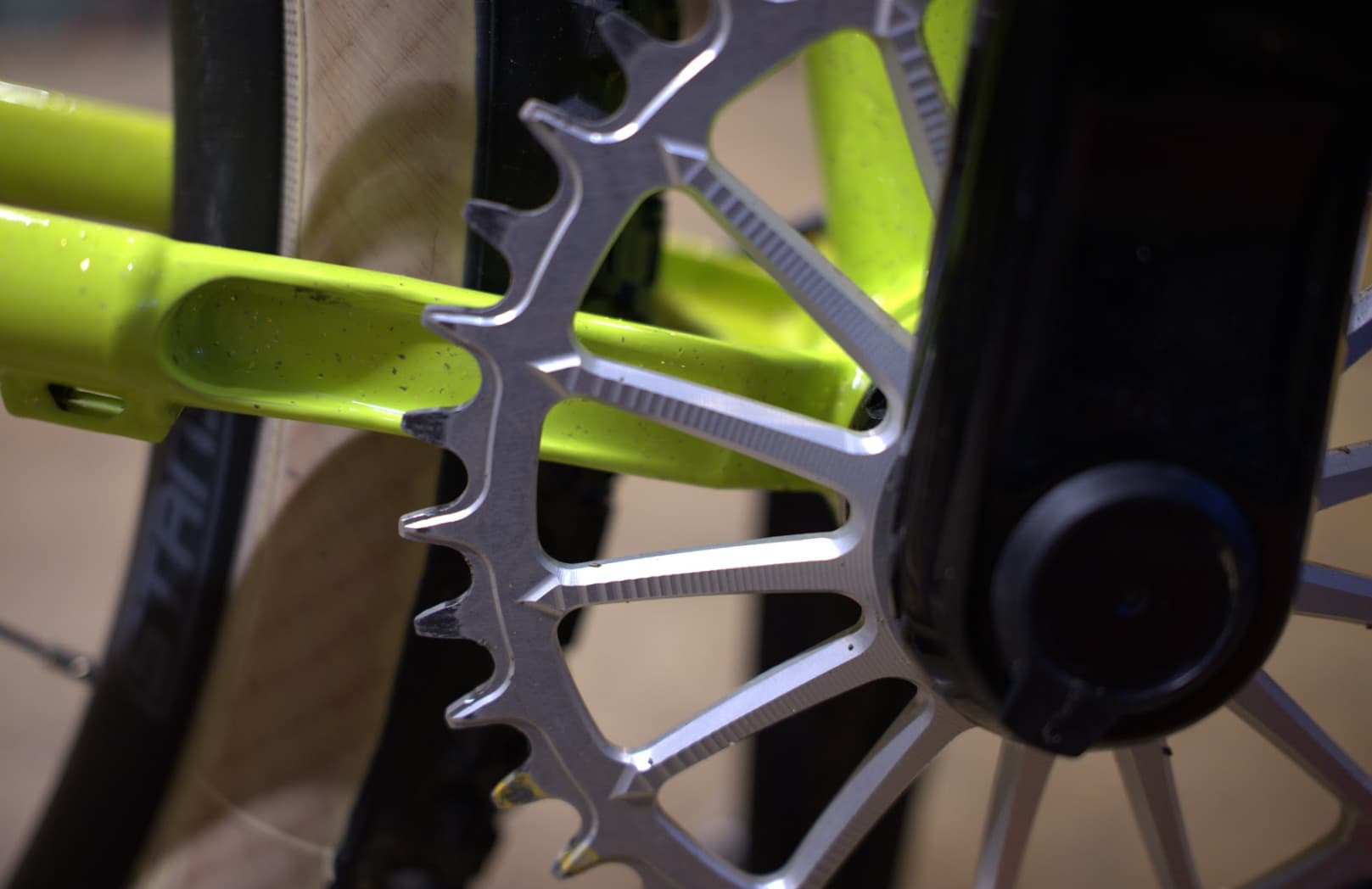

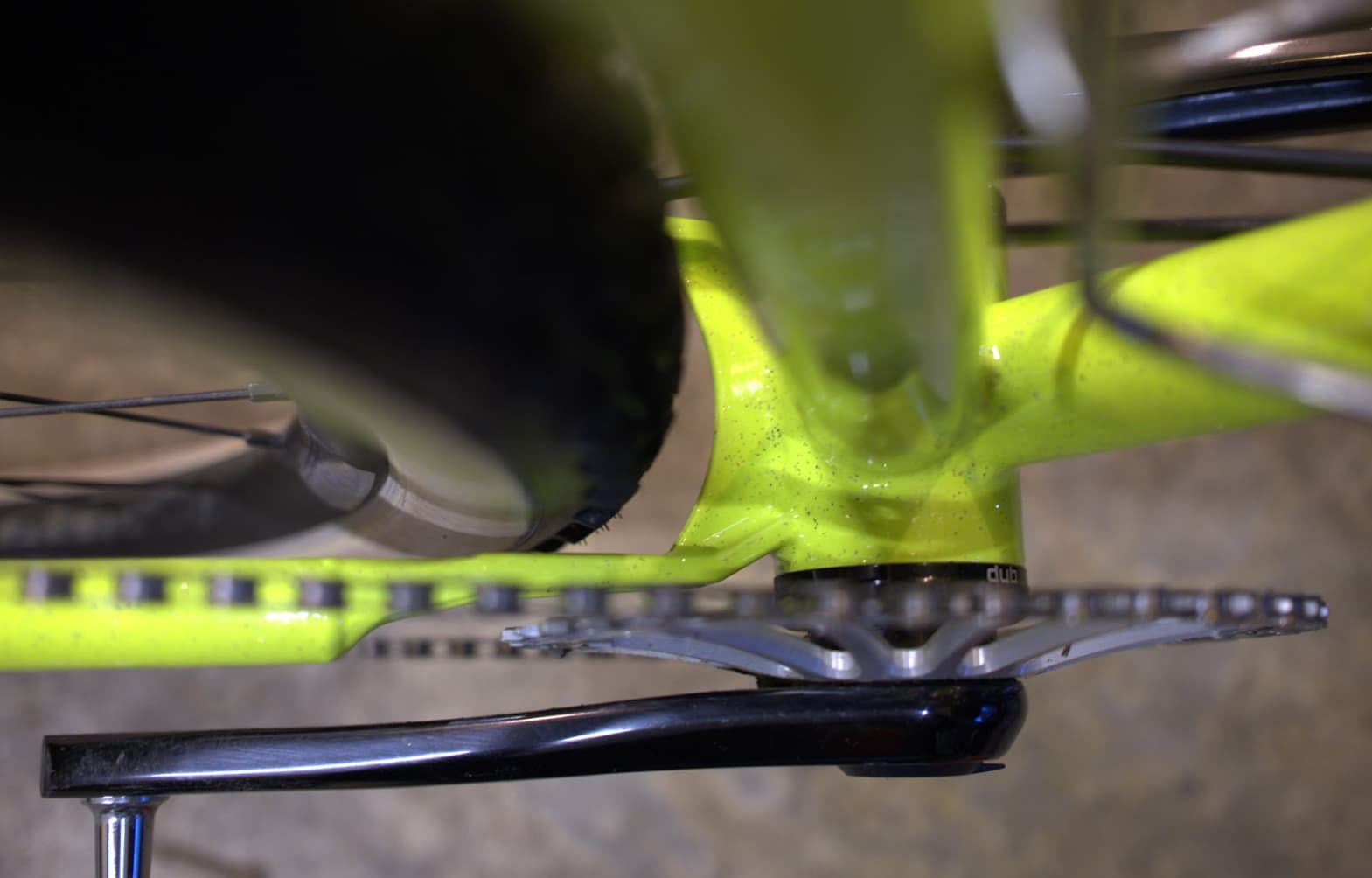

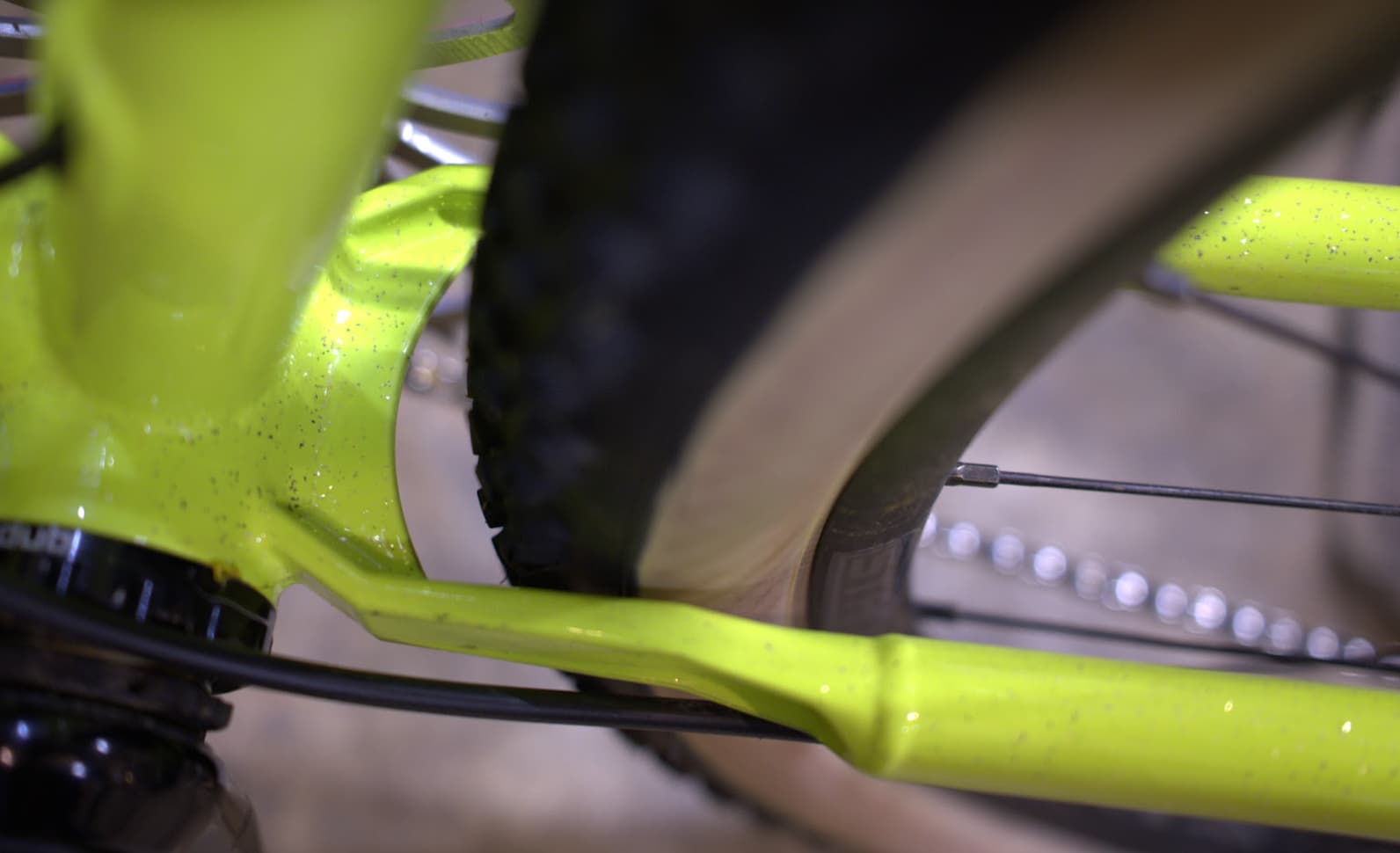

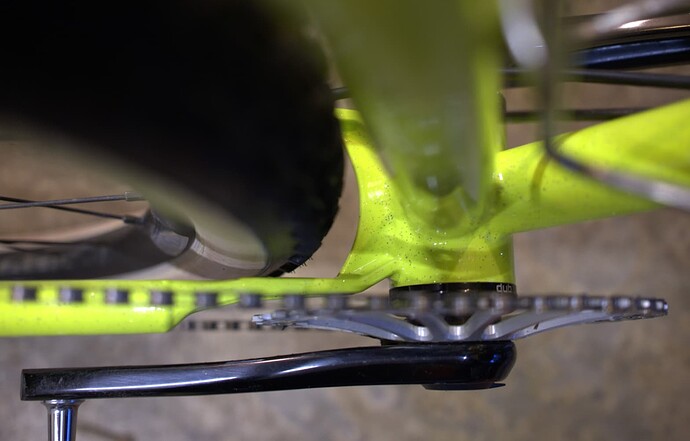

Here’s some action shots of the gravel yoke courtesy of @woodpeckercycleco
-T47/68
-SRAM dub wide bb
-SRAM rival wide crank 165mm
-Garbaruk 38t chainring
-29x2.1" Vittoria Mezcal on Stan’s Crest 25mm ID rim
6 Likes
So good. Love the look of the machined pockets when viewed from the outside too!
2 Likes
Will be order a gravel yoke very soon. Nice to see it on a bike.
Looks great.
3 Likes
Hey do you see any issues with the MTB yoke being brazed? I don’t weld
if not, I’ll order one right away!
5 Likes
@StratoCycles does your gravel yoke work with a shimano double? Or any double?
Both T47 and BSA yokes are back in stock!
I don’t always check this forum so please reach out on instagram or my email Ryan@stratocycles.com if I don’t get back to you on here.
3 Likes
Any idea when the gravel yoke is coming back in stock?
1 Like
Probably end of next week. I’ve got some other jobs lined up on the CNC. Watch this space.
2 Likes
I was wondering if you had a fusion object that I could use in my Fusion360 designs?
If not, a pdf with precise measurements would help immensely as well, I have took the measurements myself with a caliper but I would feel better to have the official ones.
Just a suggestion
1 Like
I propose this “standard” for dimensioning yoke:
- BB diameter
- CS diameter and thickness
- CS spacing
- Length (BB center to plug)
2 Likes
