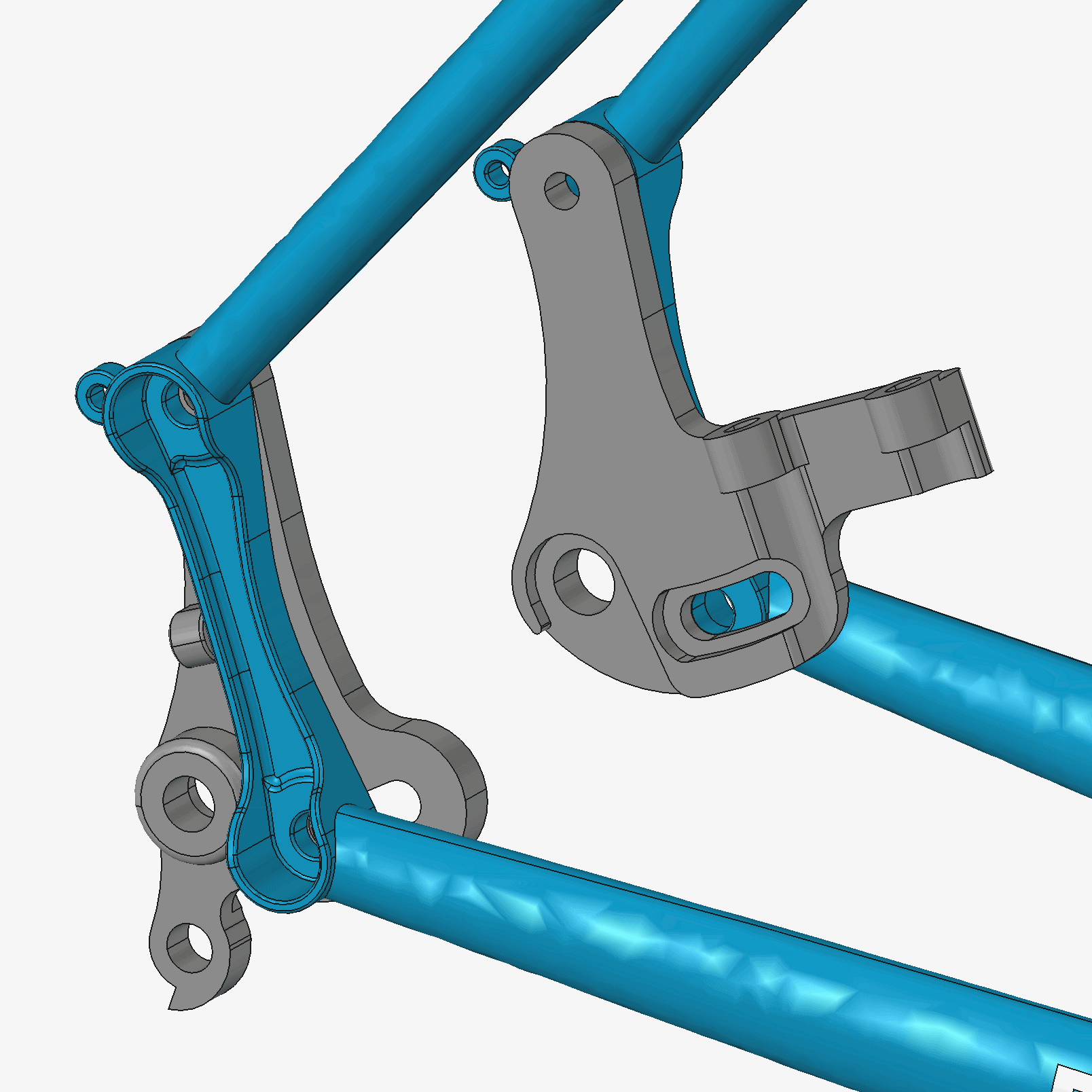

Hey! I couldn’t find a CAD design of the Allotec C130 dropouts so I made it from specs, pics and real measurements so I get a design whose precision should be <0,5mm.
You’ll find it in my Ggdrive shared docs.
It’s not a very sharable CAD model with annotation and stuff. Sorry for the lazyness, I just designed 2d to take the measurements I needed for BikeCAD and I imagined someone else could make some you of it too. At least you can modify and make it better as much as you want with this start.
Cheers,
Nicolas
