Followed that up with some coped joints of 1-1/8” x .049” wall 4130.
Not all great but practice, practice, practice!
Followed that up with some coped joints of 1-1/8” x .049” wall 4130.
Not all great but practice, practice, practice!
Fast forward a few days and you’ll be all over these joints! That’s a great starting point
No doubt! Who woulda thought that daily practice make you better at something!
Just took me a few decades to learn that lesson.
After prep and cleanup, only time for one joint today, but seems descent even though I was hurrying due to a life-imposed deadline. Some balled up spots but better than before.
*30 degree joint.
Been a few days with life taking me places, but I was able to get a practice session today. Ran some beads on the flat just to refresh, then did another 45 deg join.
Keep it up and you will se results.
I would recommend get proficient at 90 degree before moving on to angled miters. Angles increase difficulty drastically.
I also clamped my T in a drill press vise for tacking and used it to position the work. These small joints are tricky on a flat table.
Some great advice I did not know I needed was “remember to breathe”. This does wonders to relax you.
Agreed. Mostly wanted to test my skill a little and playing with the new notcher. I do clamp them down, vise seen in the corner of the top pic.
Mostly need more time. Only 187 months to retirement, but whose counting?
Another day at the practice. Tried a more blunt tungsten grind. Also ordered a tig grind attachment for a dremmel for consistent angles and to try and remove one more variable. (3mirrors brand $38 off Amazon, FWIW)
Two joints today, 1-1/8” x 0.035”, 85max amps, rule of 33’s.
#1
#2
Incremental progress. I need to remind myself to stop when I get out of position. Might help to get stronger cheater lenses, too.
Session # 11
Used the new tungsten grinder today and love it! Works like it’s supposed to and the grinds look way better than I ever did on the bench grinder. Wish I hadn’t waited so long.
Welded one joint up. Felt relaxed & in control. Still some inconsistent spots. Will keep chuggin’ along.
Between work and a mild illness, it’s been a week, but I was able to prep and weld two joints today. Feeling pretty good about them, know they’re not perfect, but scrolling back I can see improvement. Working I definitely feel the improvement.
Session #12
First:
Second:

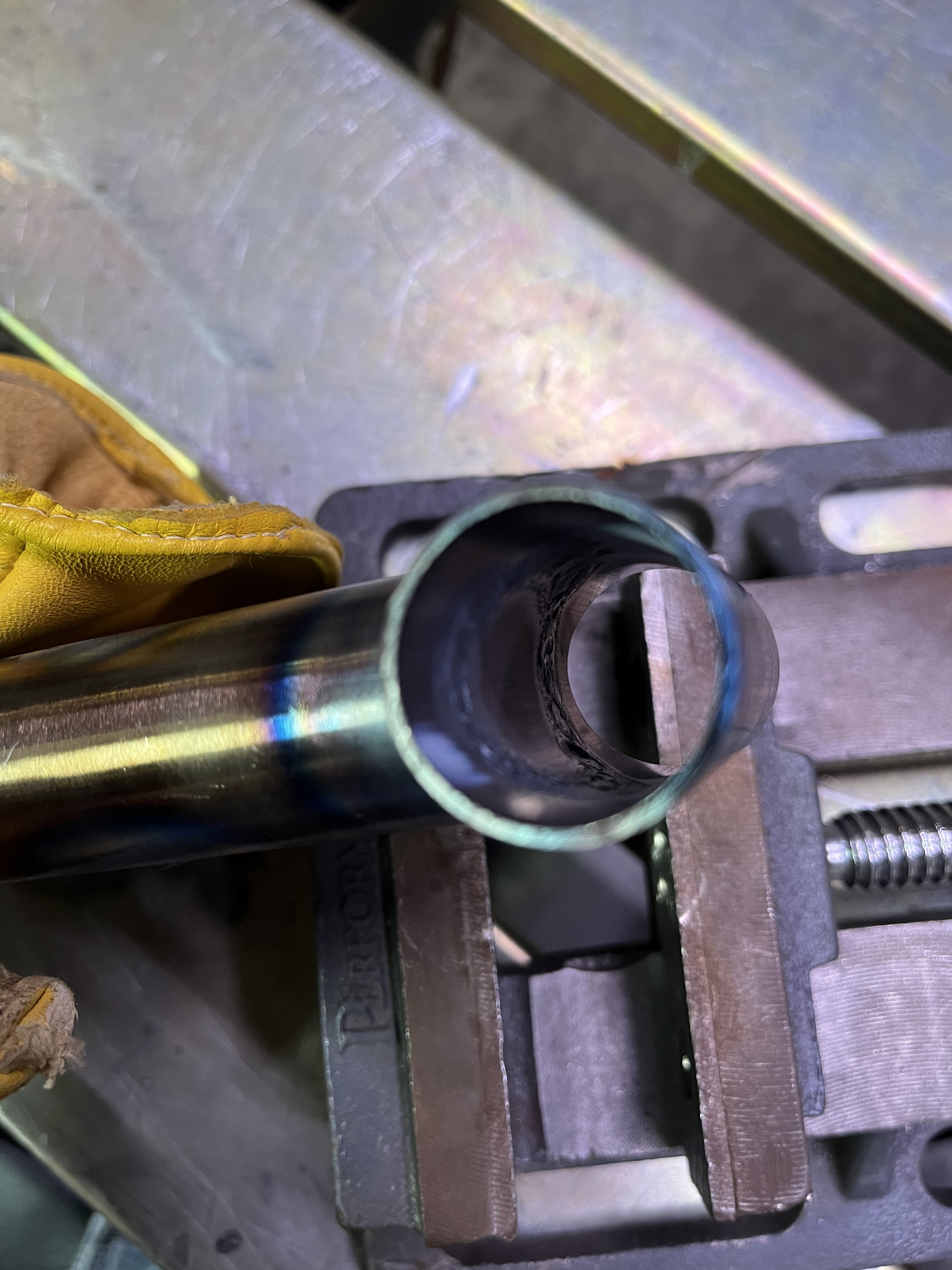

The inside, if it tells anything:

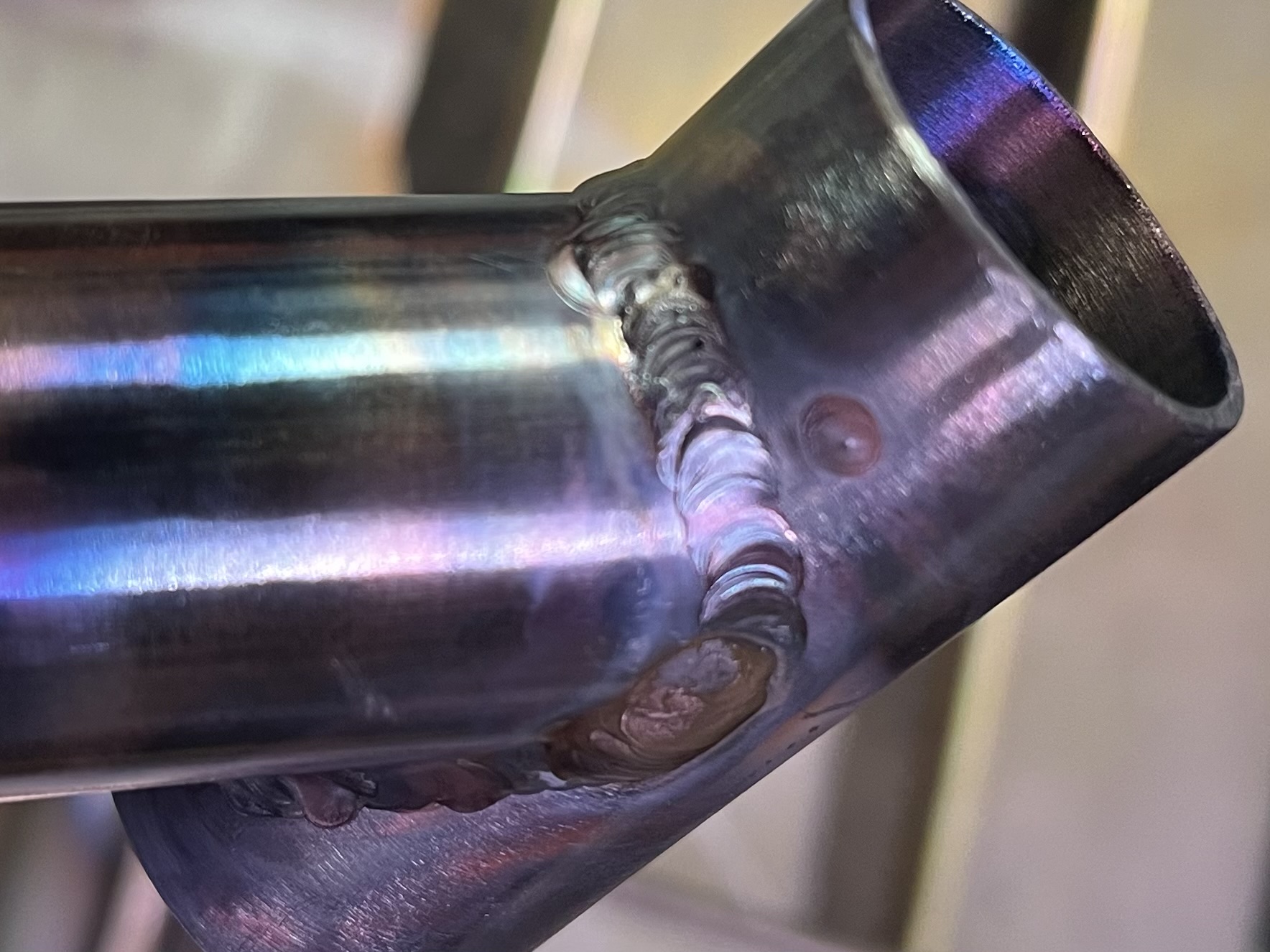

Lucky #13.
Feeling like I’m getting it. Maybe soon I’ll buid something. Something more bike-shaped than this:
Nah, you’re just making the most complex lug I’ve ever seen. Now put it in a cargo bike somehow.
I picked up one these after using a bench grinder for a couple years and my arc is now a stable cone of beauty. Wish I hadn’t waited so long.
