Bent down tubes/ shock clearance

Hi folks!

Making custom-sized frames when the design calls for a bent downtube in order to clear rear suspension damper reservoirs (piggy backs) has long been a pain in the ass for me.

The design I’m working on now has the lower shock mount a little further forward, too. So in to truly offer any size (which is what I’m pursuing 100% going forward) would require a custom bent tube for every frame (extremely costly). Bending the downtube would also mean using a pretty heavy wall tube which otherwise wouldn’t be necessary and prevent me from selecting the tube I see fit for the rider and application.

So I’m looking at using a 3D printed elbow to joint two straight sections of downtube. This elbow would be a custom bend, specific to the frame/ rider I’m building for. It would be ordered in along side a few other parts on a frame-by-frame basis.

I’m behind the curve on 3D printing and I’d like to call upon those more experienced, if I may :pray:

Is this a bad idea? I’ve seen a few frames utilising a similar idea but it doesn’t seem to have been adopted more broadly than some one-off prototypes, hence I’m wondering if people have had issues. But I hope that (done well) it can be made to work.

All input or ideas on how else to solve this problem very much welcome.

Cheers!
Thom

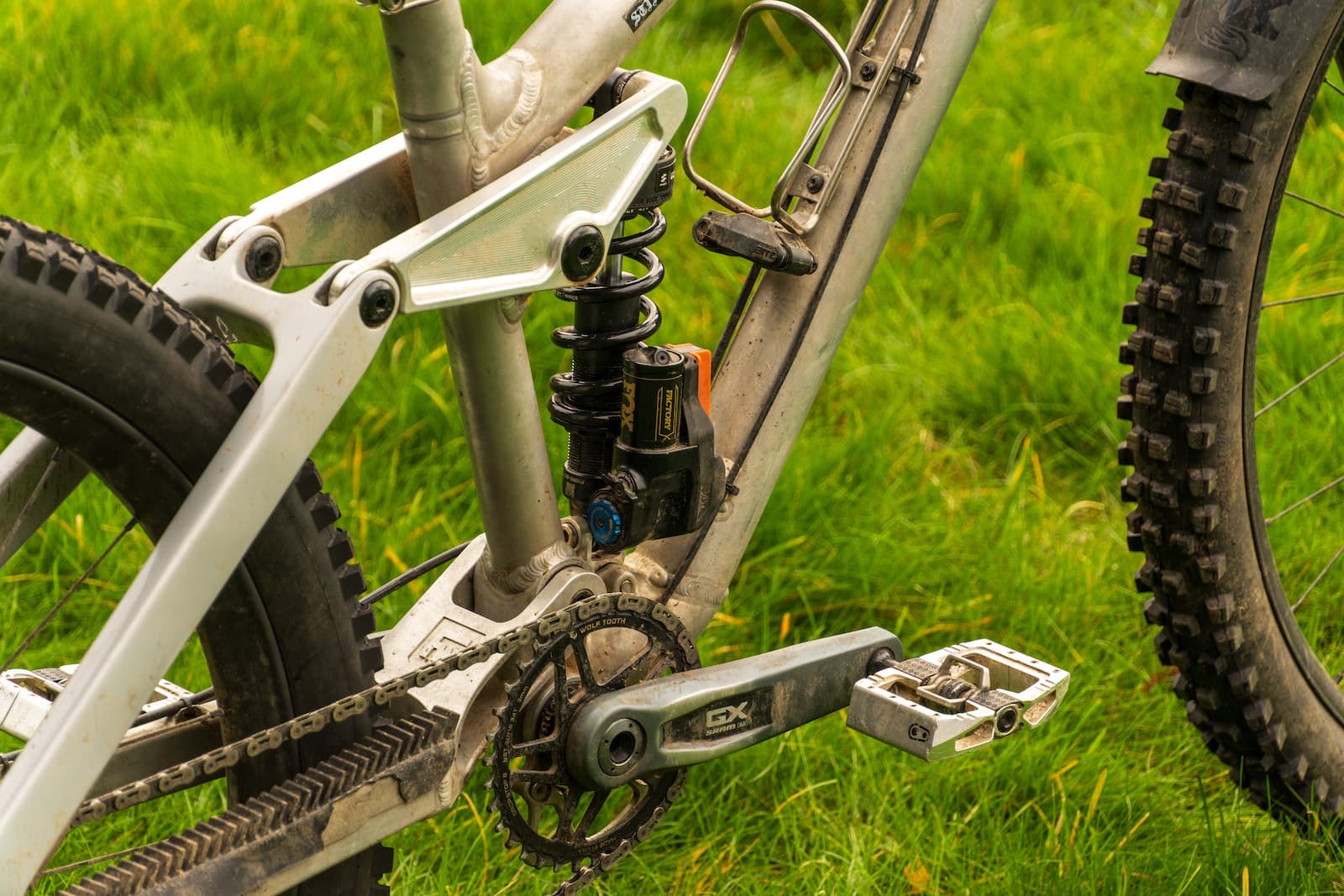

Design around turning the shock like Neko did with his Frameworks frames?

2 Likes

Good idea, I’ve looked at this kinda thing before on other designs but for this one I’d forgotten all about this trick. I’ll have a play and see if that’s doable :+1:
