The design work on the 2024 Bespoked crowd favourite Dummy Wheel is finished, in which I have taken many fellow framebuilders’ feedback into account and applied some updates and additions. The production will begin soon!
I have structured it as a modular piece of equipment; so you can mix and match its attachments according to your needs.
Here is an explanation of the parts, with according prices:

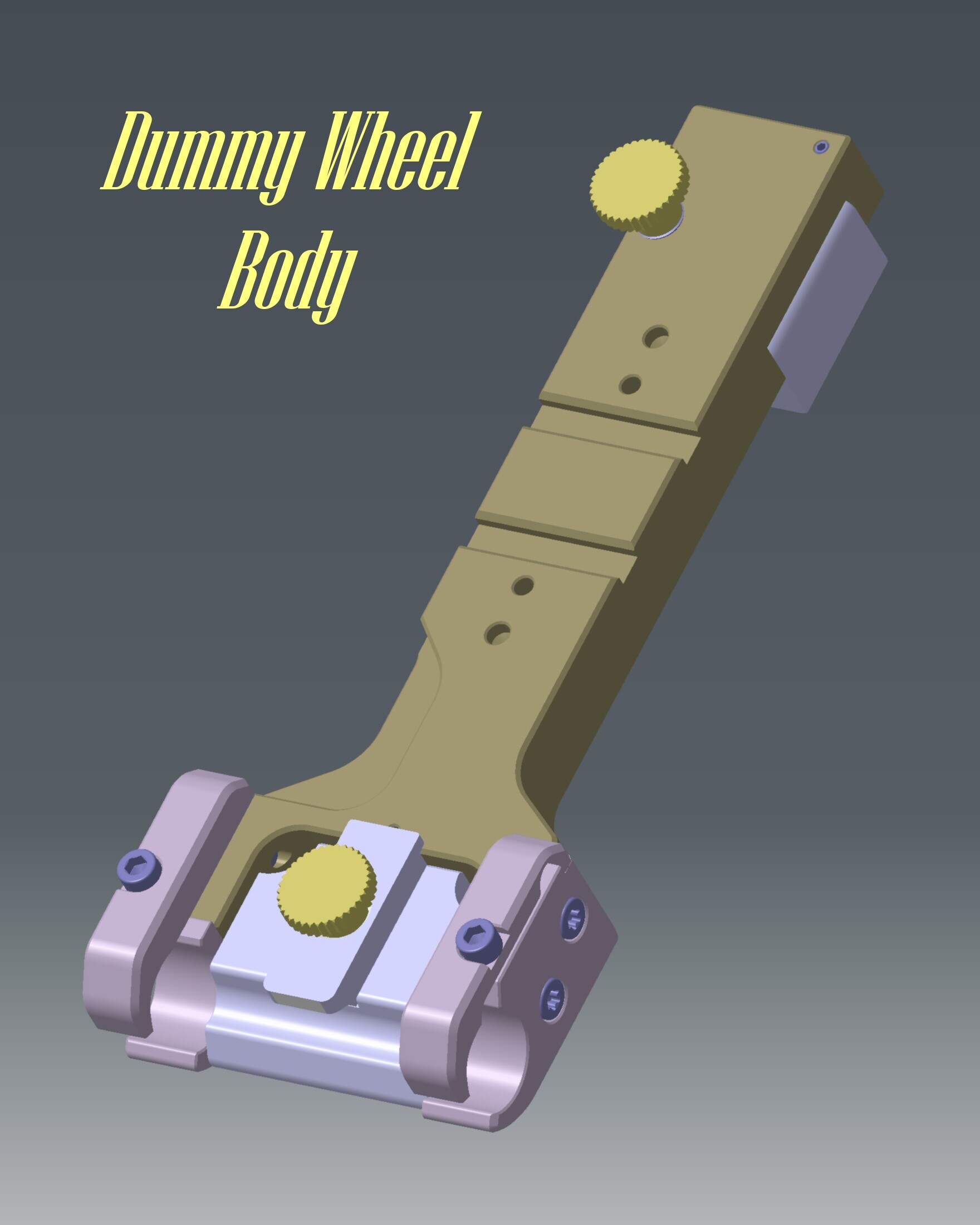

Dummy Wheel Body - €275 :
Compatible with 24" or 650c wheels and upwards (will work for 32" even more maybe) Compatible to 19mm or 25.4mm dummy axles via exchangeable inserts. 1 pair of Axle Inserts included in price.

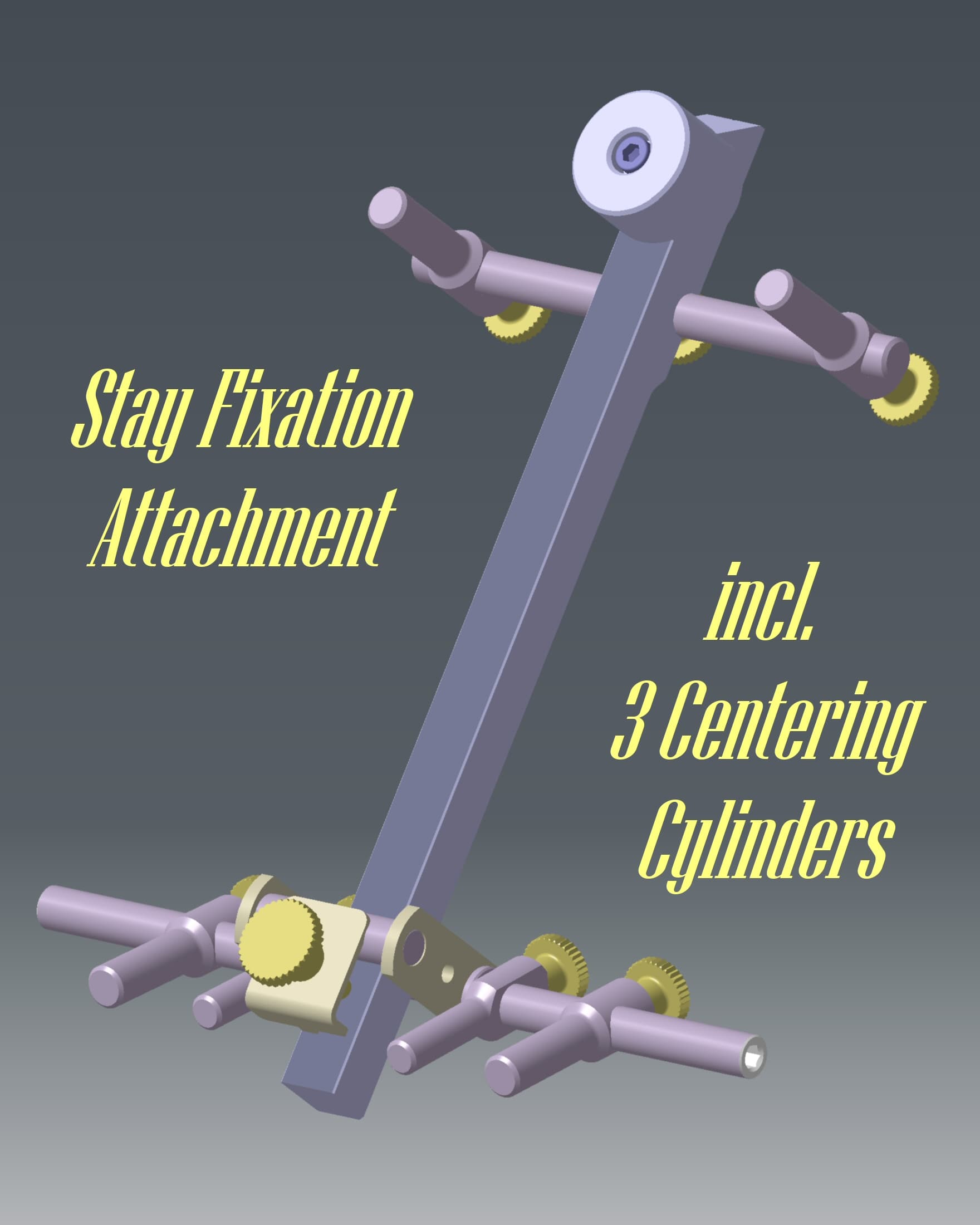

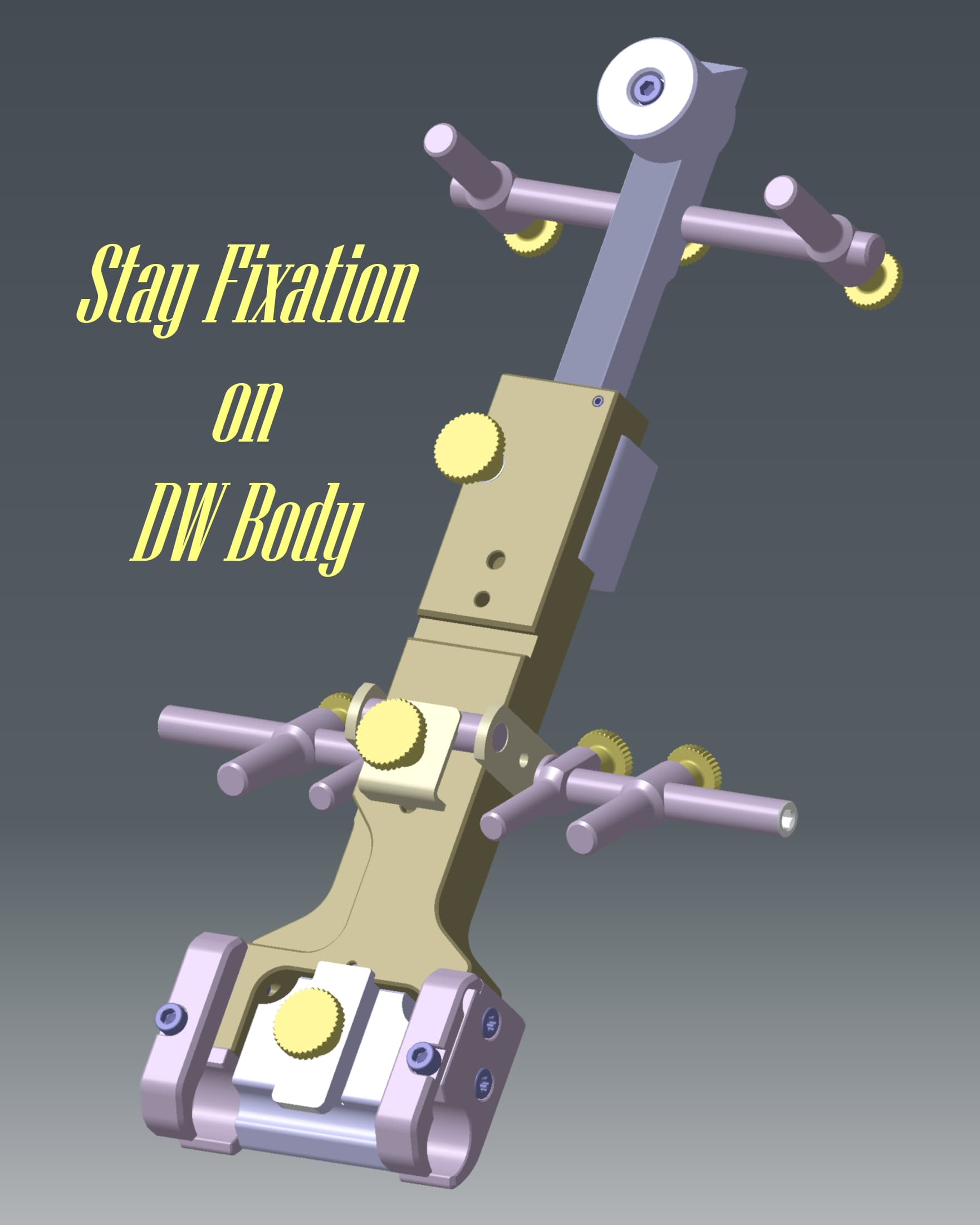

Stay Fixation Attachment - €275 :
To be used on a framebuilding jig, to center and fix the SS’s or CS’s. Middle Cylinder does NOT represent a tyre, it acts as a centering stop; it comes in 3 sizes (all 3 included in price) which cover nearly all usual kinds of rear spacing; from slim Track bikes to Fatbikes.

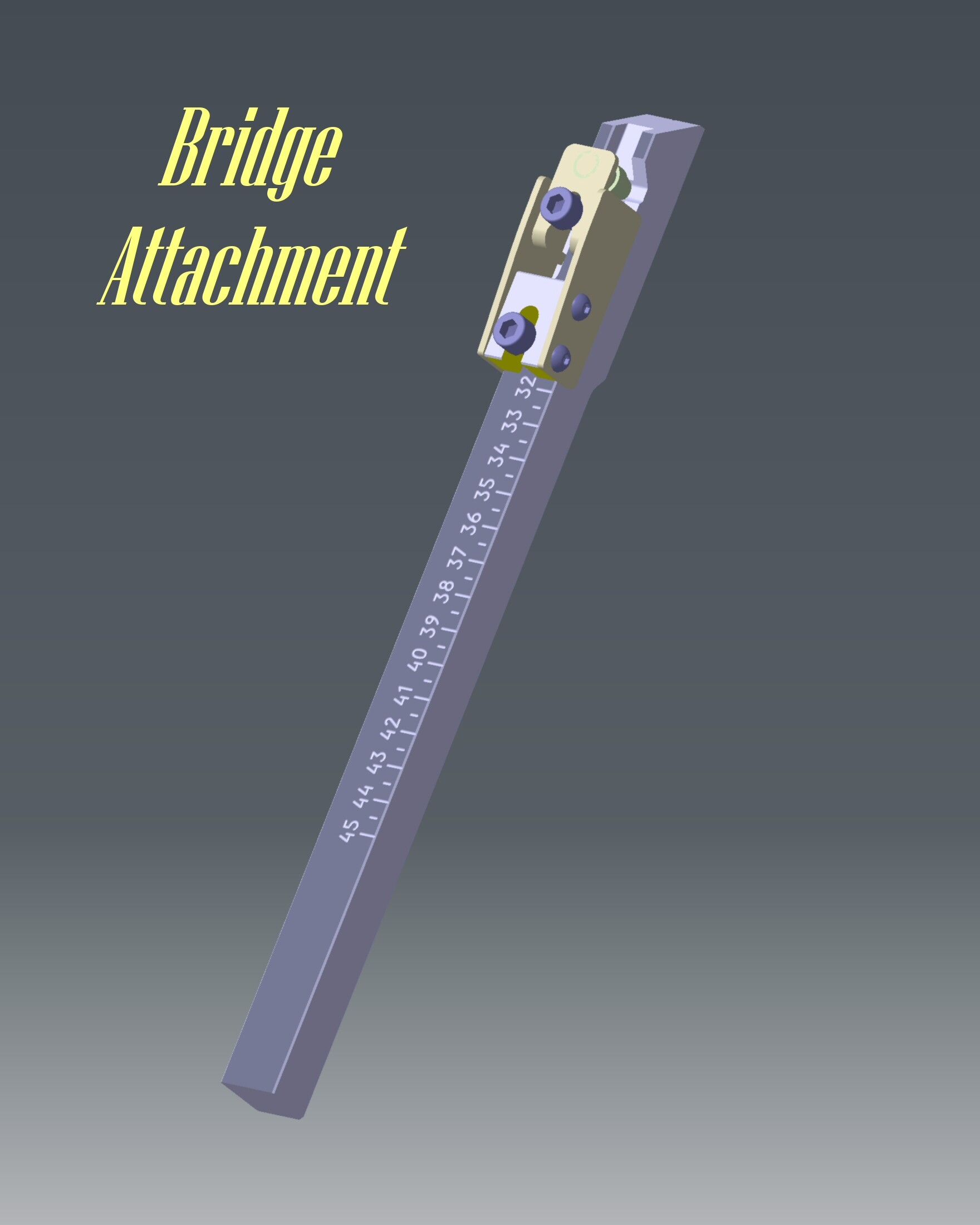

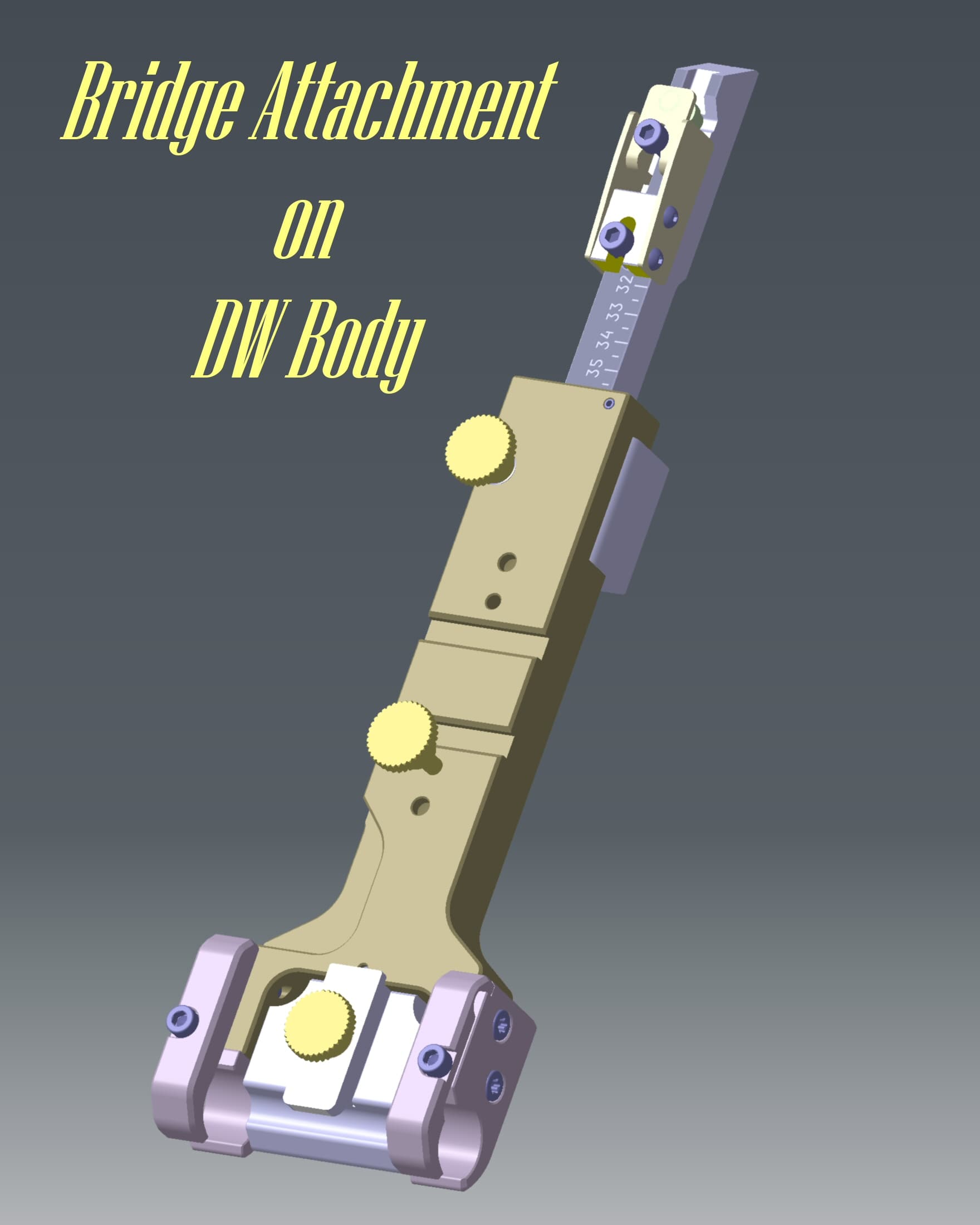

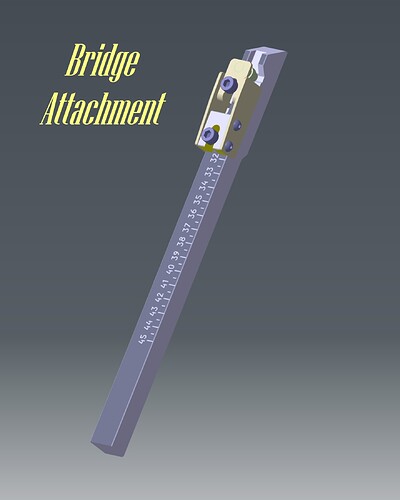

Bridge Attachment - €80 :
To position bridges. Can position and hold Caliper brake bridges, straight bridges and curved bridges firmly. Has a scale for Bridge Center.

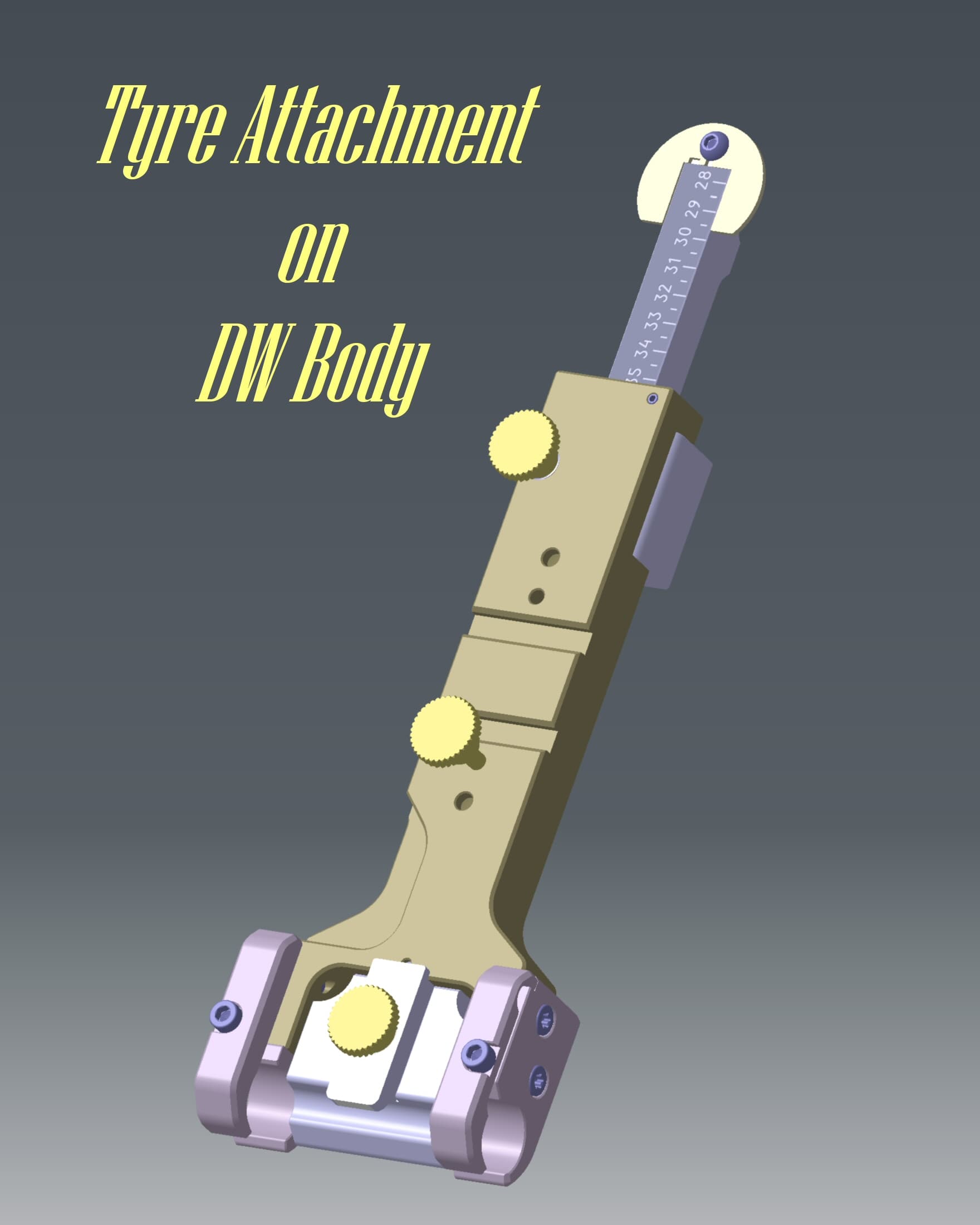

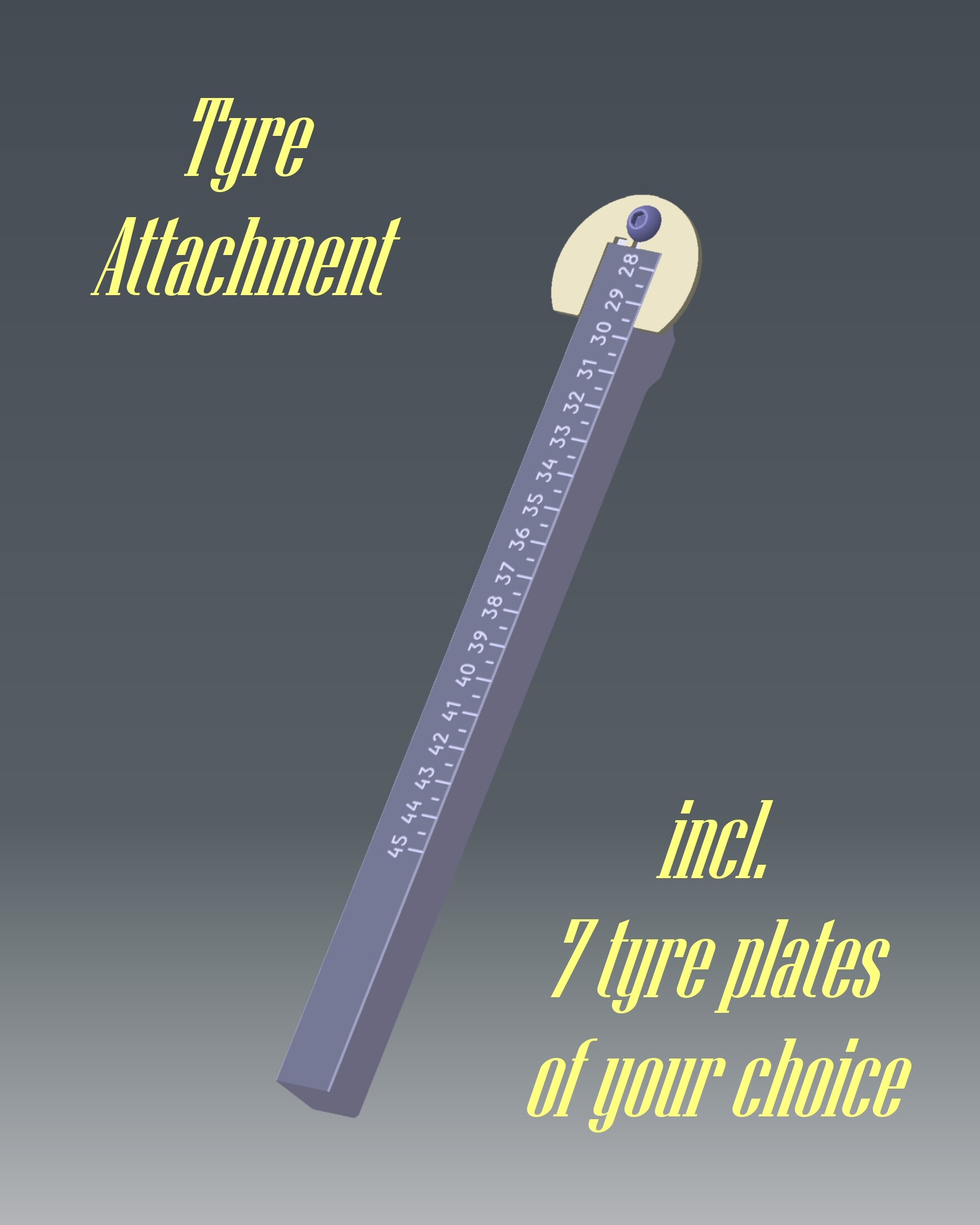

Tyre Attachment - €80 :
For checking the frame with a visual representation of the tyre. Scale reads the Outer Radius of wheel. Replaceable Tyre Plates comes in 17 sizes (maybe more in the future), 7 of which is included in the price. (23,25,28,30,32,35,38,40,42,45,47,50,54,57,60,64,70)
Each extra Tyre Plate €7.

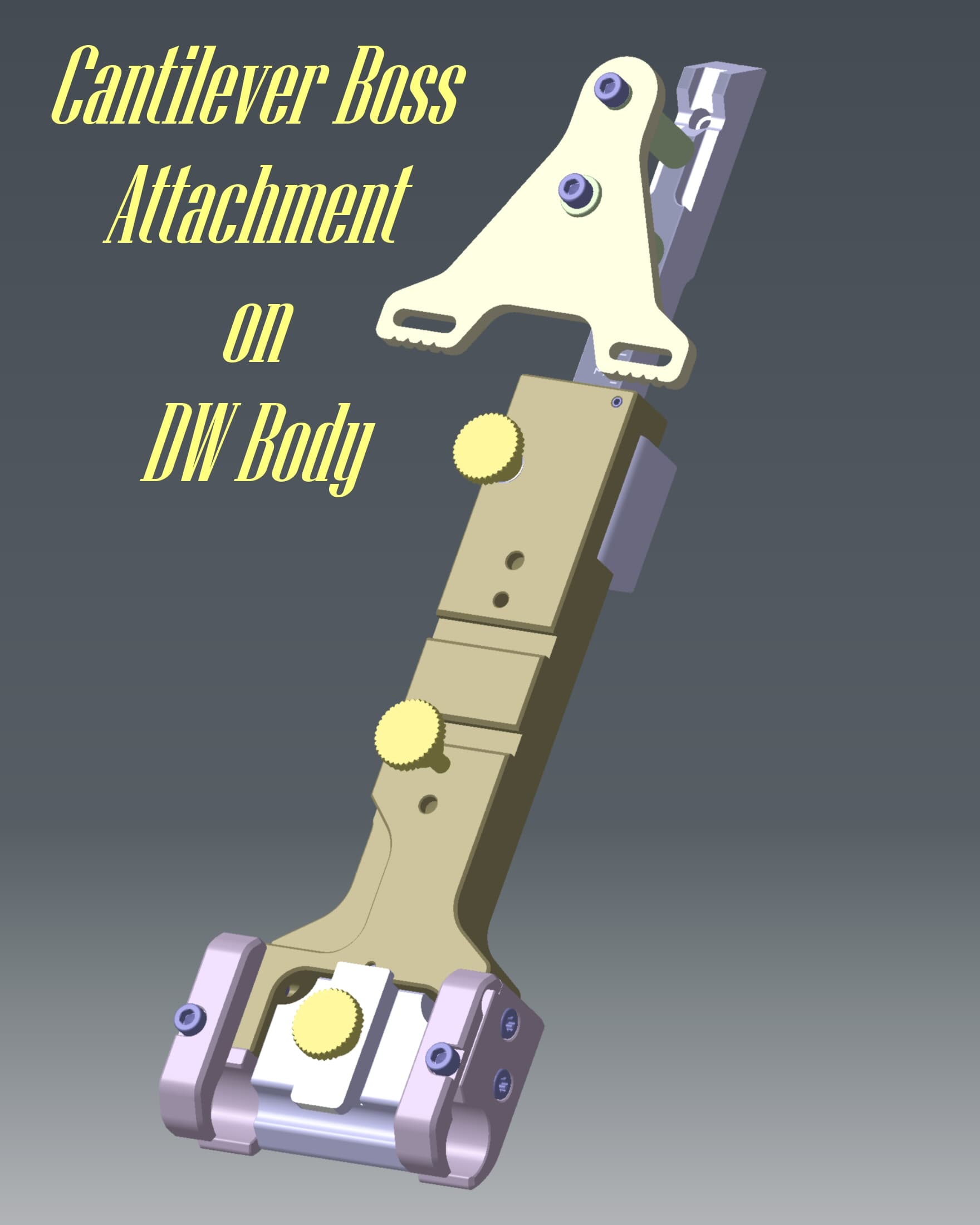

Cantilever Brake Boss Attachment - €45 :
Works with the Bridge Attachment.

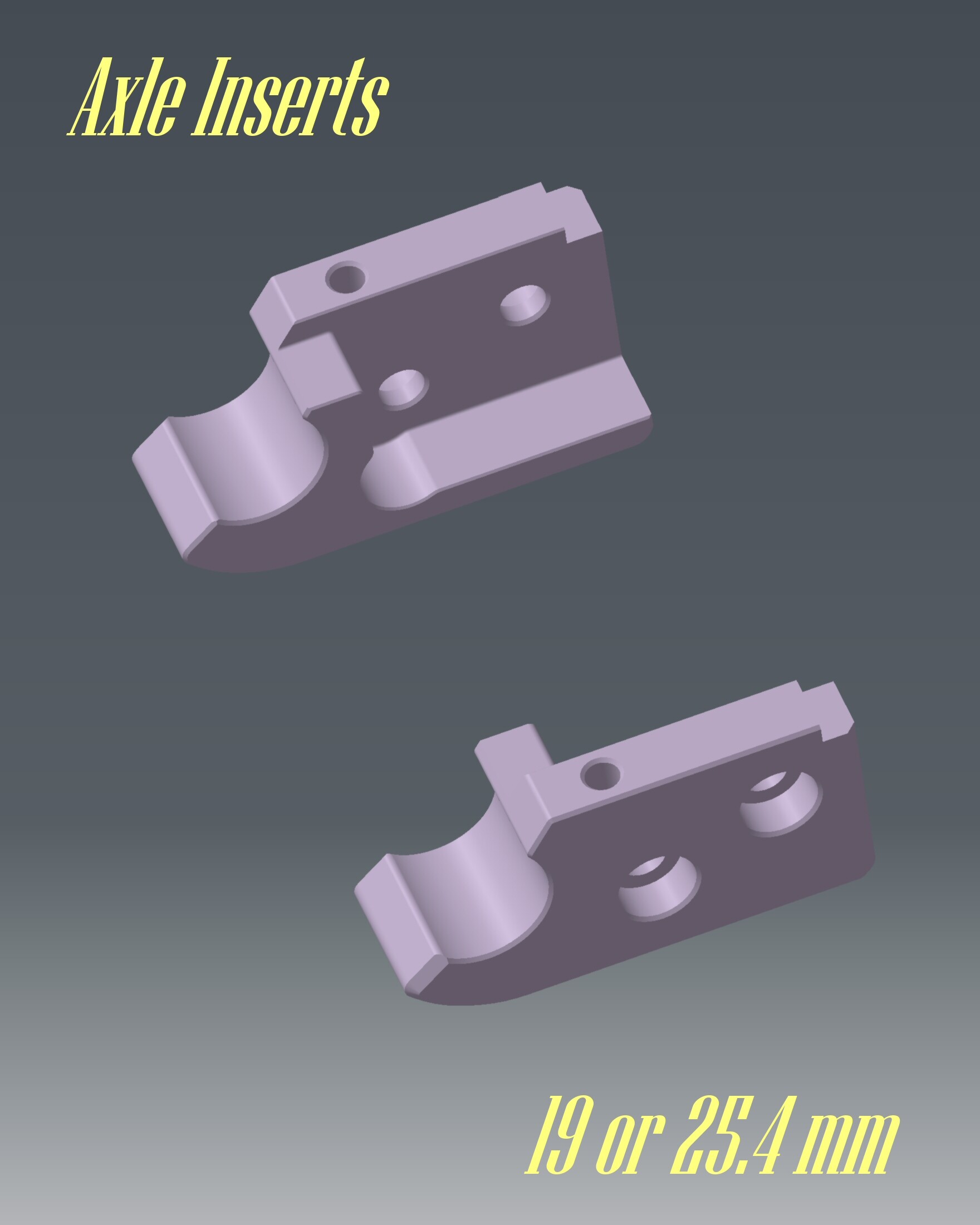

Extra Axle Inserts for Body - €60 :
19 or 25.4mm

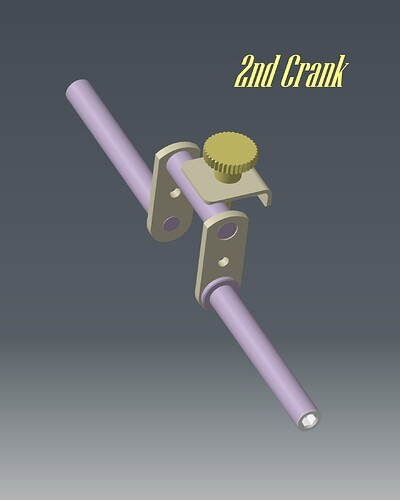

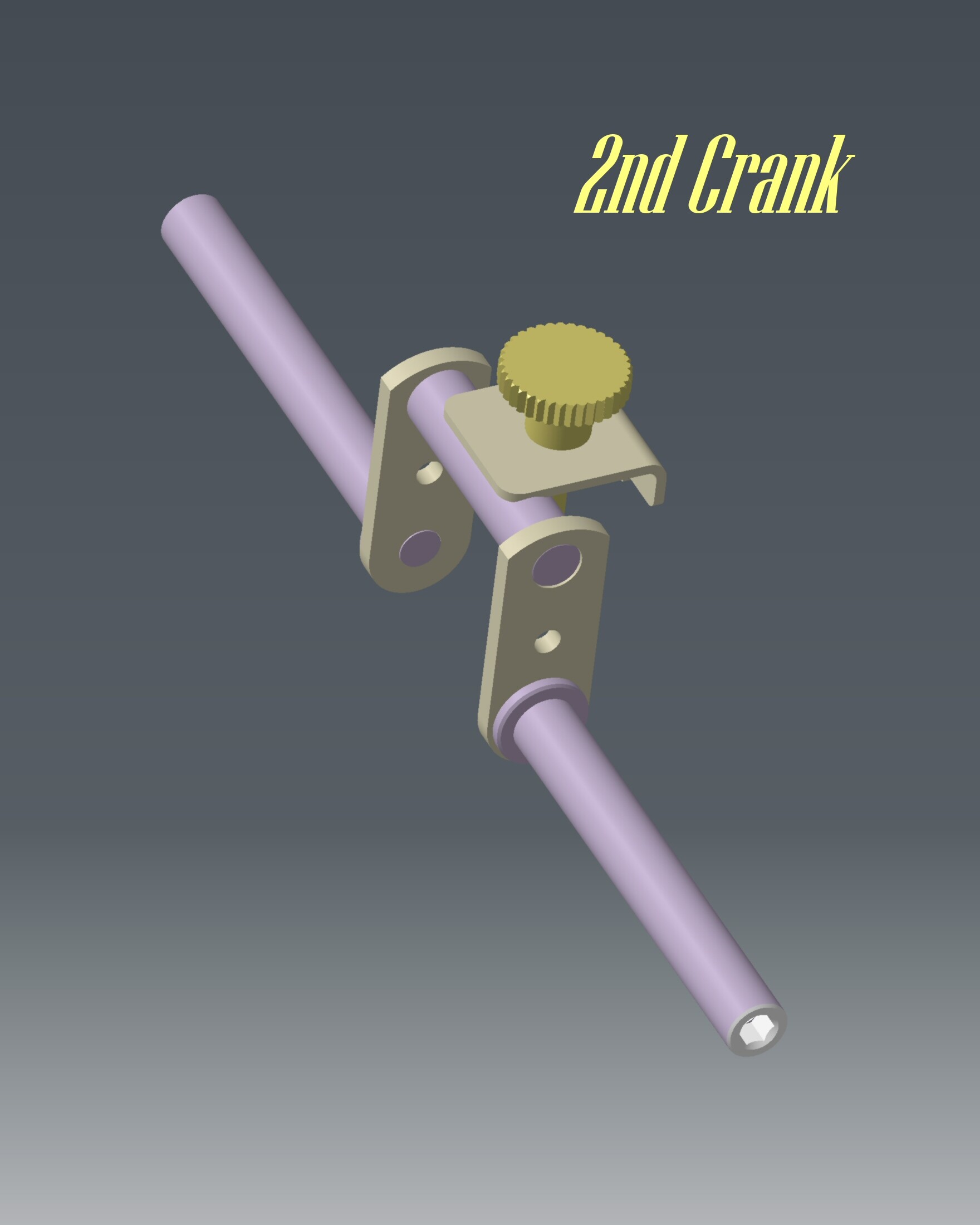

Optional 2nd Crank for Stay Fixation - €75 :
For an additional support point when fixing S-bend stays etc
I will need %50 downpayment if you’d like to order one. Delivery will be end of July 2025.
I do not plan to produce so many excess Dummy Wheels in the first batch, so make sure to pre-order one.
Please send an email to berbil@breliscycles.com if you’d like to order, or if you have any other questions in mind.
