[CAD] The Tube Library

Education CAD
1

This is a community-run CAD library for bike tubes and parts! This is still a work in progress!

For each item, it is recommended to have:

  • 2D drawing (PDF)
  • STEP file
  • F3D file (if made in fusion)
  • An example use (most useful for chainstays!)

The dream solution for this repository would be:

  • A CAD library of all the different chainstays
  • Each chainstay has a dimpled CAD version
  • Each dimple has a 3D printed die you can download
  • Each chainstay had documentation and examples of how people successfully used them
    • tire clearance, chainstay length, bottom bracket, crank clearance, etc…
6 Likes
2

This is a placeholder. I will write more when I get a chance!

3

I’ll add my library once I make 2D drawings for all the tubes!

4

Ok I will add something. It is an alignment tool I made. I am a complete noob with F360. I printed these out to check my frames. Dont want to step on toes because people make them but here is my contribution to the forum. I did not know how to make a 2D drawing yet. (noob)

bike align tool
bike align tool982×756 70.7 KB

fat bike
fat bike757×785 71.5 KB

Alignment tool tool fat bike F360 noob.f3d (386.4 KB)
Alignment tool F360 noob.f3d (709.4 KB)

4 Likes
5

Nice. If I were going to make them for myself, and I probably should, I’d make one in each size I needed and make the reference way longer. In your example, the 157 would be hard for me to use because of the 197 getting in the way.

2 Likes
6

BFS UNO CX 24MM S BEND CHAINSTAY:

CHAIN+STAY+MPO240V2024
CHAIN+STAY+MPO240V20242292×1771 60.4 KB

BFS-24MM UNO CX S BEND CHAINSTAY 440MM MP0240C2024.STEP (713.4 KB)

Here’s the 3d printed nest for thhis chainstay incase anyone needs it:
BFS-24MM UNO S BEND CX CS NEST.STEP (523.9 KB)
BFS-24MM UNO S BEND CX CS NEST.STL (285.5 KB)

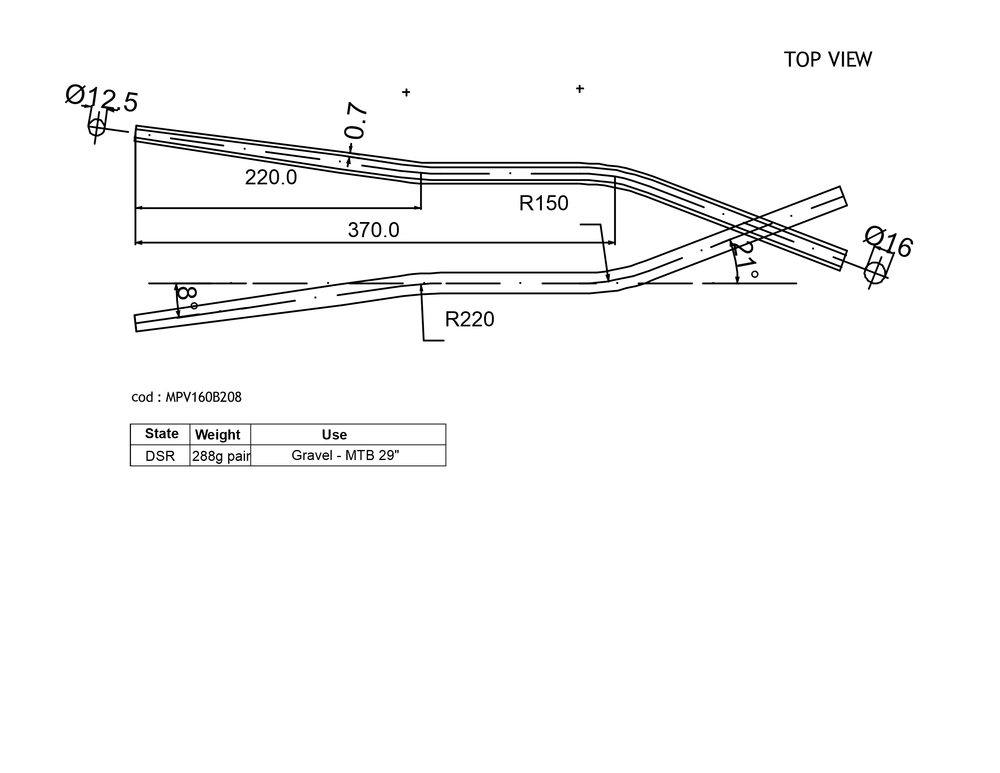

BFS 16MM UNO MTB S BEND SEATSTAY:

SEAT+STAY+MPV160B208
SEAT+STAY+MPV160B2081000×773 35.1 KB

BFS-MPV160B208 UNO MTB S BEND SEATSTAY.STEP (537.4 KB)

I have to update my model of the 16mm cx s bend seat stay before uploading it, I’ll have to come back and update this post.

3 Likes
7

Thank you for the uno mtb s-bend upload! Pretty much all my bikes use that one haha

4 Likes
8

Here’s a few that I’ve made.

Columbus Zona Fatbike Seatstay ZON915560FAT

ZON915560FAT Columbus Zona Fatbike Seat Stay.STEP (298.5 KB)

1 Like
9

Columbus Zona MTB S Bend Chainstay ZON615560133

ZON615560133 Columbus Zona S Bend MTB Seat Stays.STEP (542.8 KB)

1 Like
10

Columbus Life S-Bend Chainstay SLF114OV410133E
SLF114OV410133E.pdf (366.1 KB)
SLF114OV410133E Columbus Life S Bend Chainstay.STEP (1.1 MB)

2 Likes
11

Years ago I created some parametric SolidWorks files driven from a spreadsheet representing the various dimensions in the Columbus and Dedacciai tube catalogues. Sadly, I have not kept them up to date.

I’ll aim to go through them and update as per the latest catalogues.

To start, I’ve uploaded a selection of the Columbus double bend chainstays here:

(I believe they’re accurate matching the 2018-2020 catalogues.)

1 Like
12

Here are a few more. 19mm Deda S bend Seatstays. Both the CX and MTB versions:

19MM Ø ZERO UNO MTB S BEND SEAT STAY 19/12.5 Ø X .7 X 560MM MPV190B6022
19MM Ø ZERO UNO CX S BEND SEAT STAY 19/12.5 Ø X .7 X 560 MPV190B602

TBE-MPV190B602 19mm Zero Uno CX S Bend Seatstay.STEP (120.8 KB)
TBE-MPV190B6022 19mm Zero Uno MTB S Bend Seatstay.STEP (120.8 KB)

2 Likes
