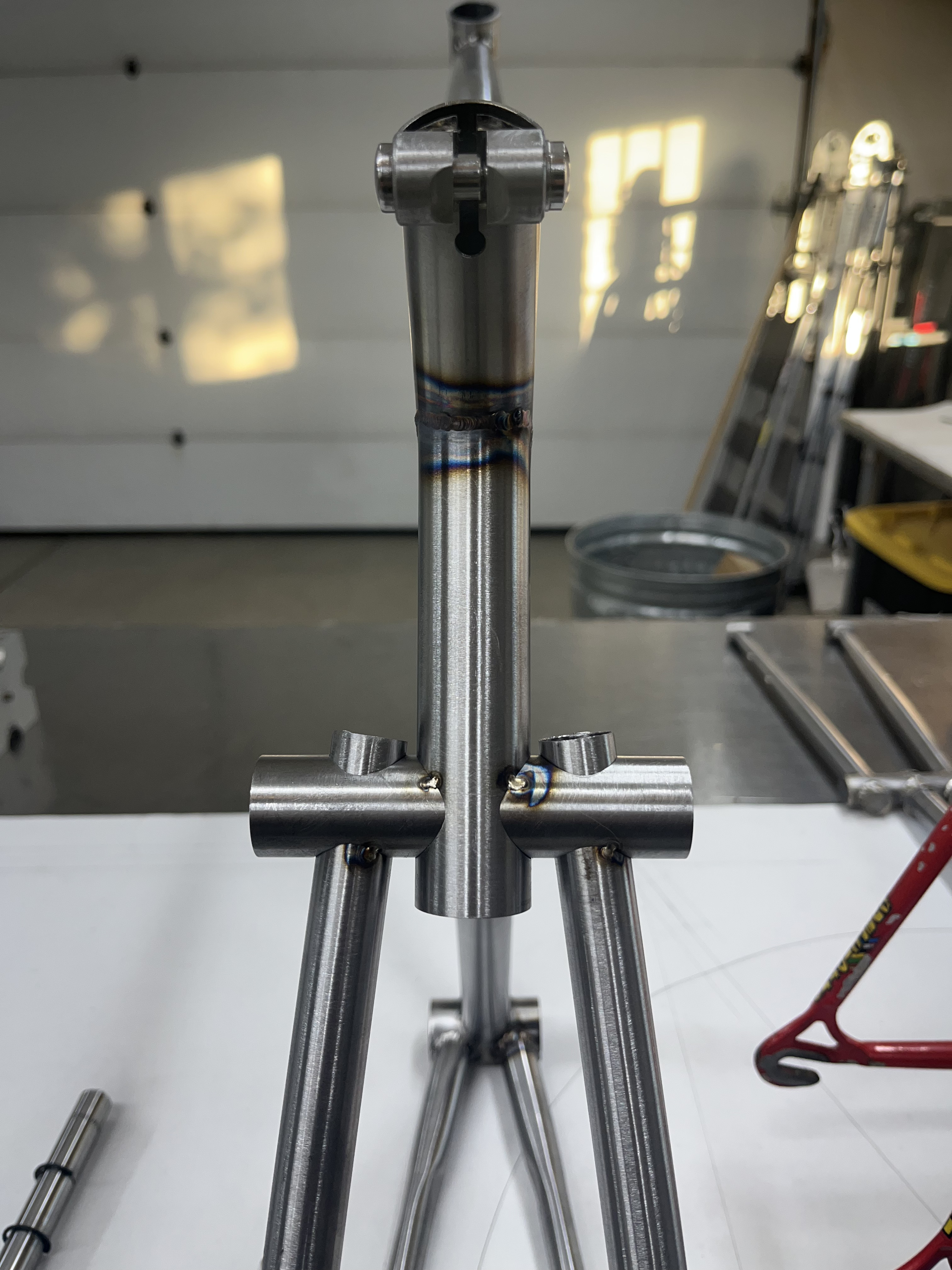

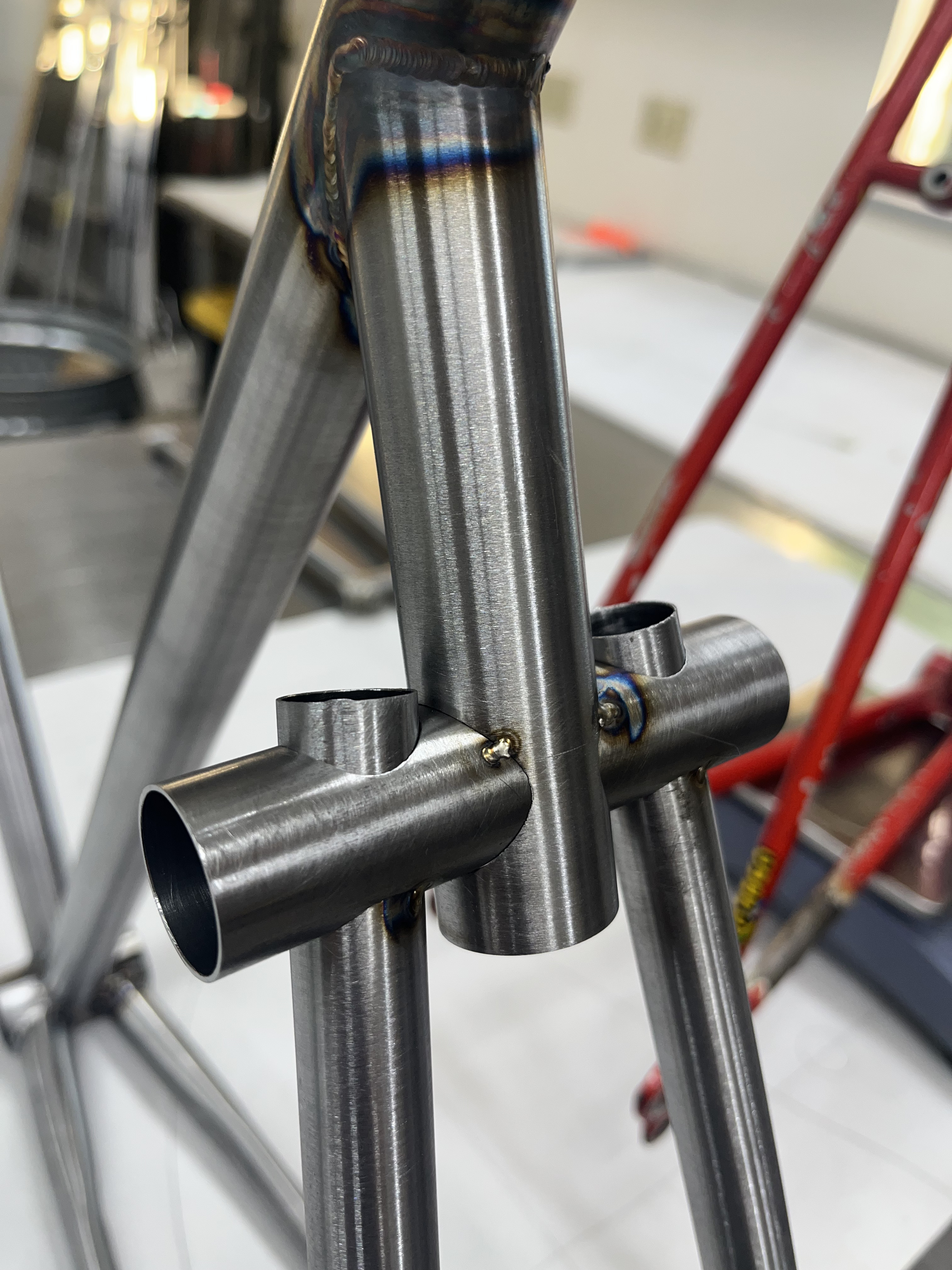

Building my third complete frameset. This will be for a customer. Going groucho all-terrain, built around 650x50 wheelset with snug clearances, geo favoring asphalt over dirtpack. Pics will document progress. Here is the “segmented” fork, aka tube node.

Still need to braze brake posts and bosses, but this “nodular” aesthetic will repeat on the frame if I succeed. I’ll be running cantilever brakes on thru axle hubs. Oh, and a 1” threaded steerer and quill stem. More to come.

Geo:

74° seat tube
71.5° head tube
69mm bb drop
430mm chainstay
595mm front center
~1018mm wheelbase

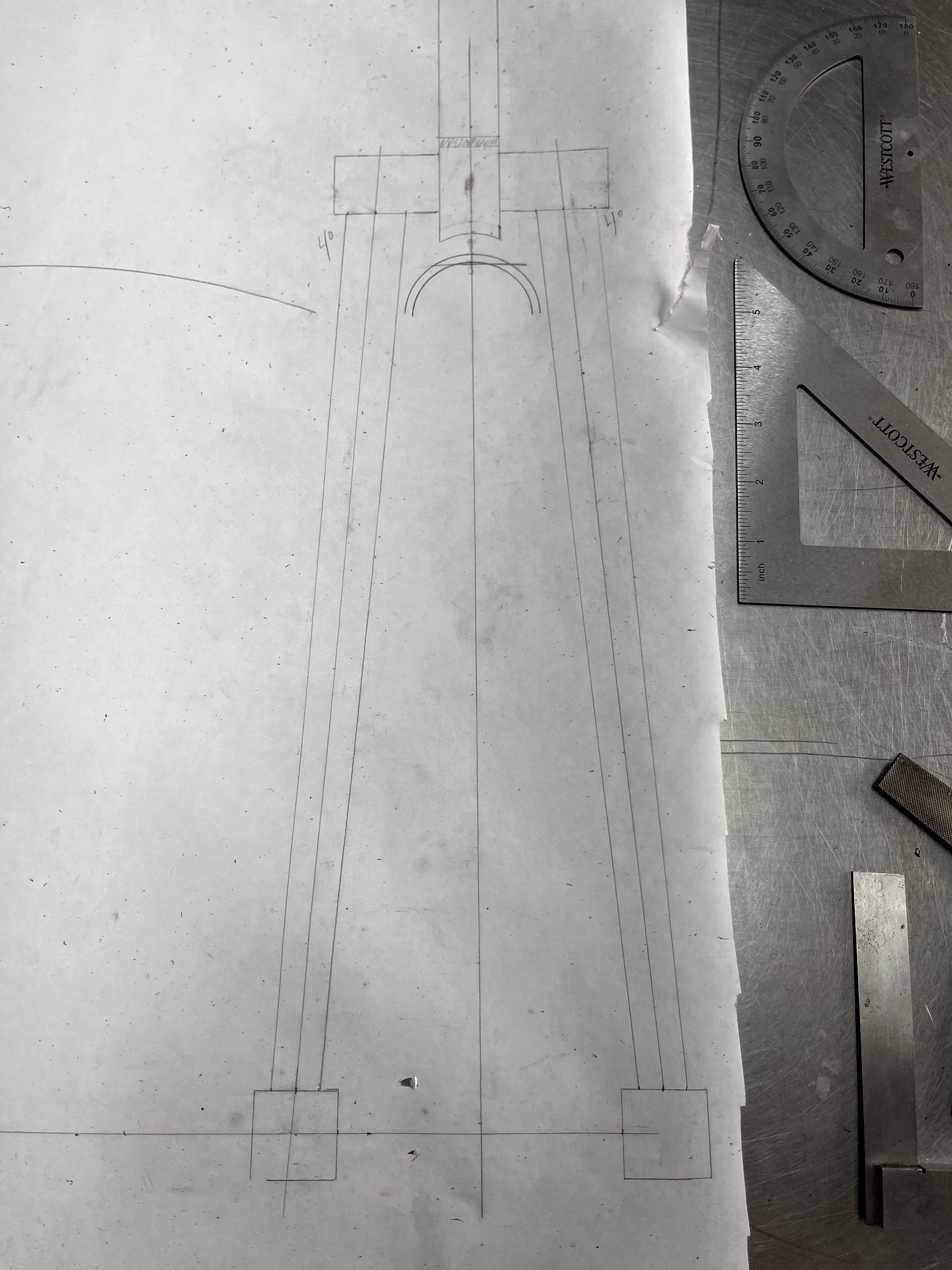

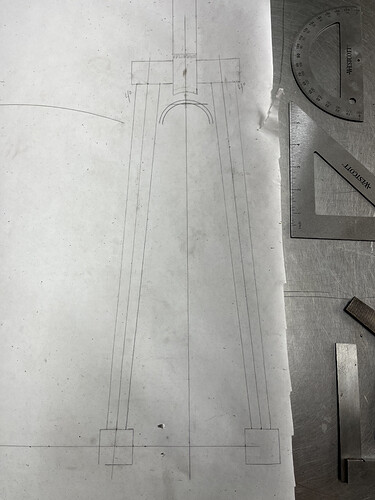

I currently draft true to scale by hand, so no CAD pics.

5 Likes

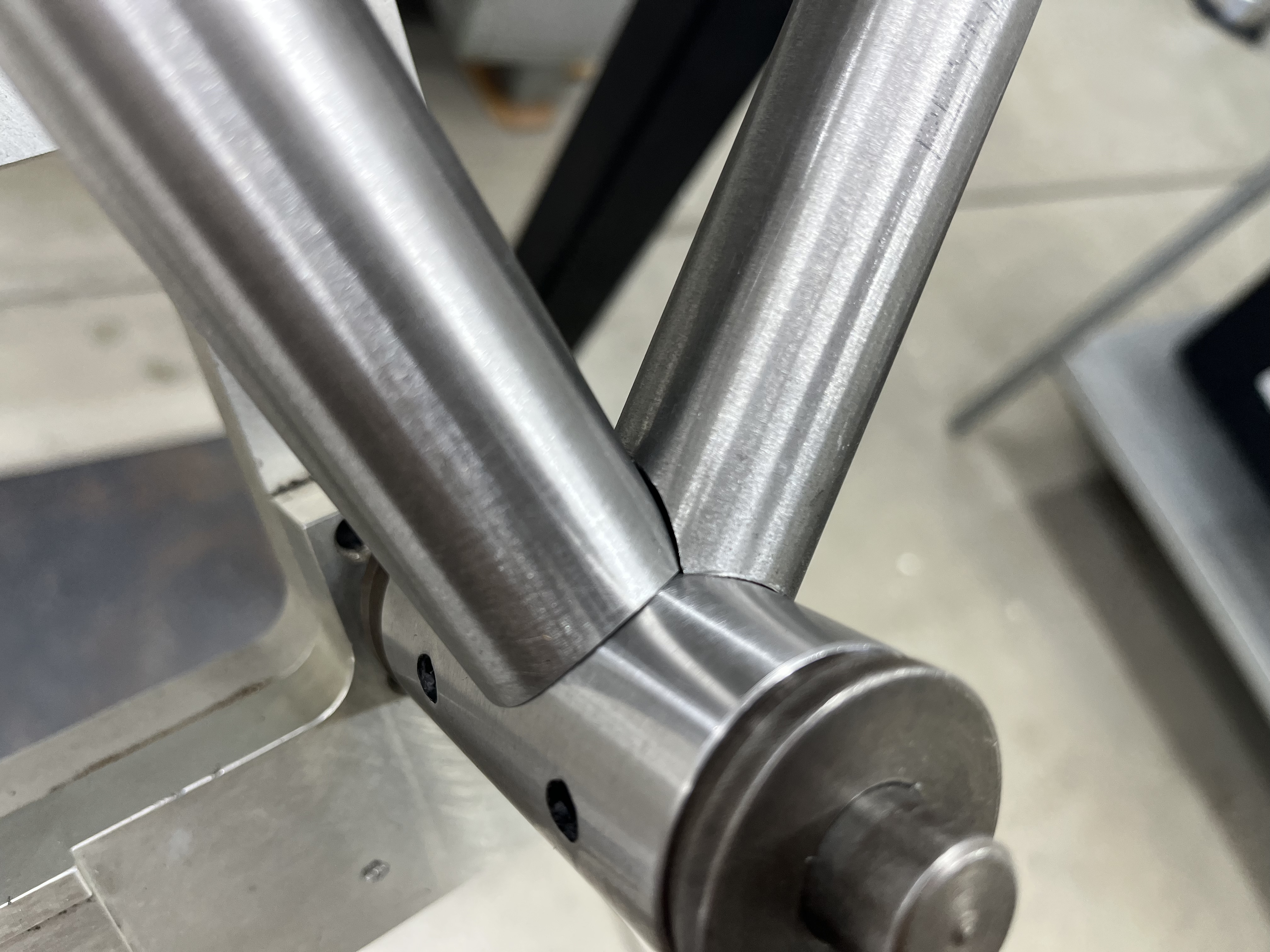

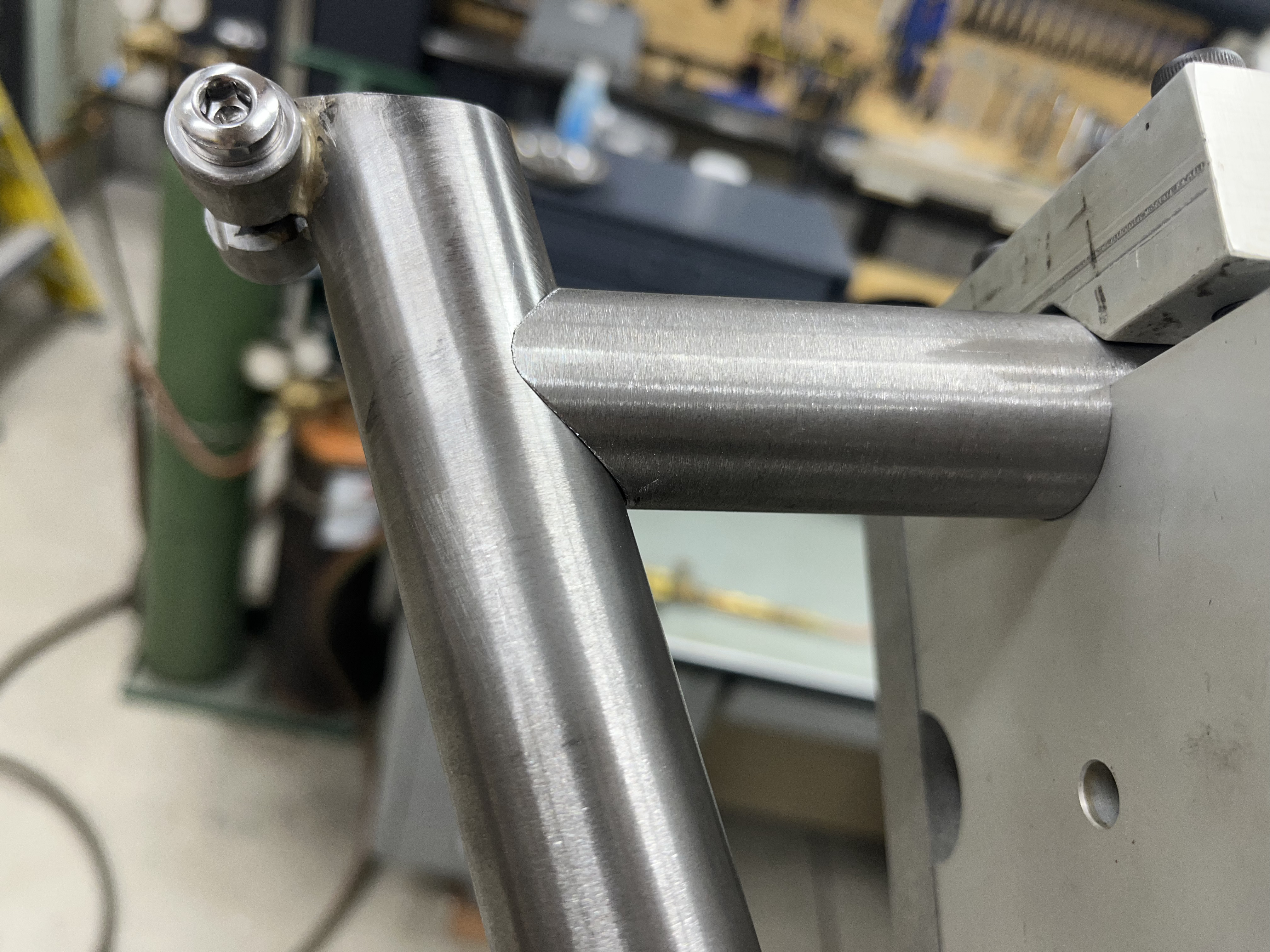

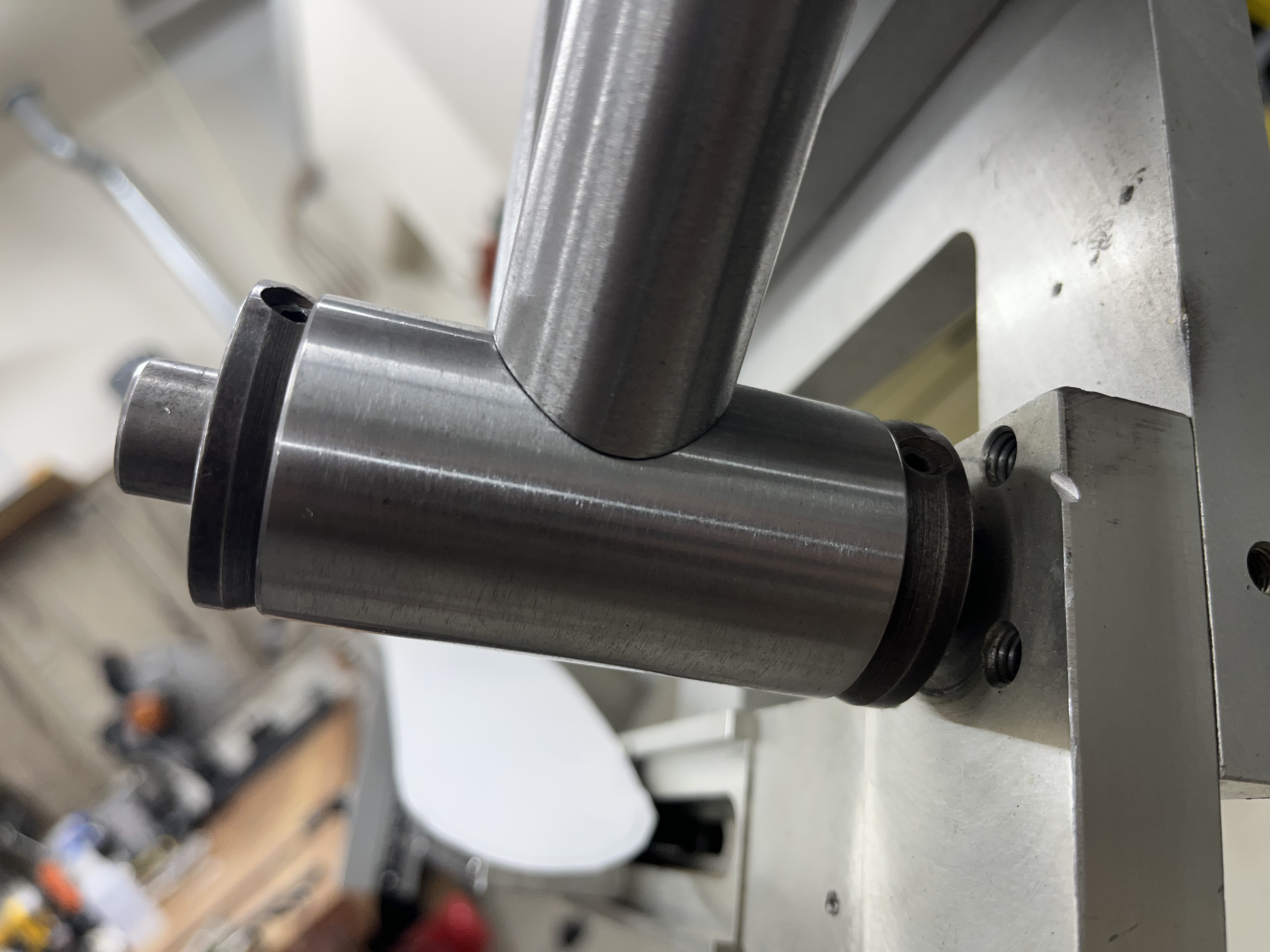

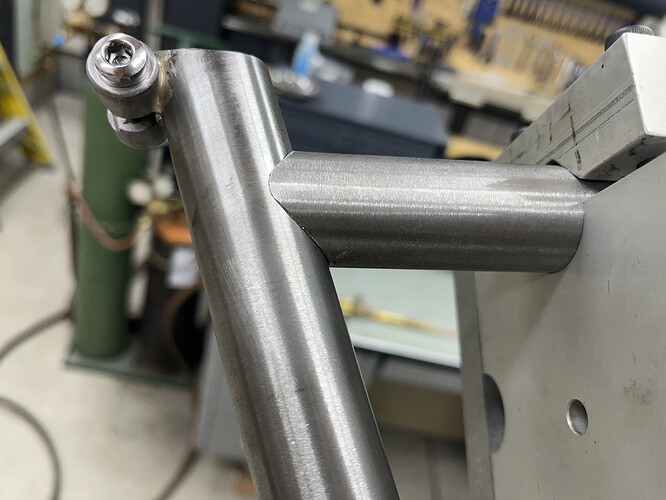

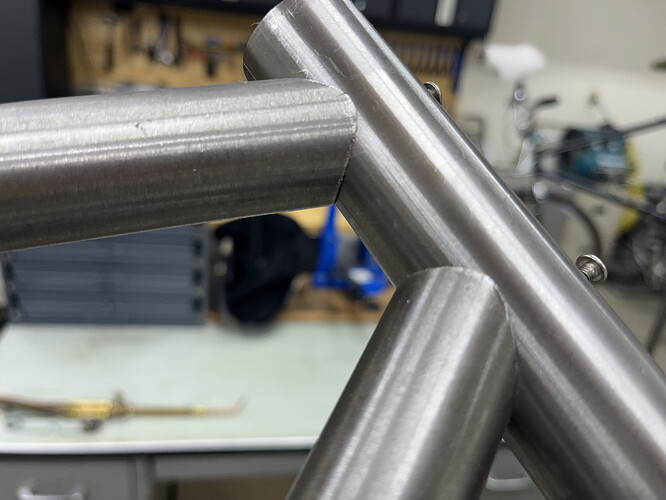

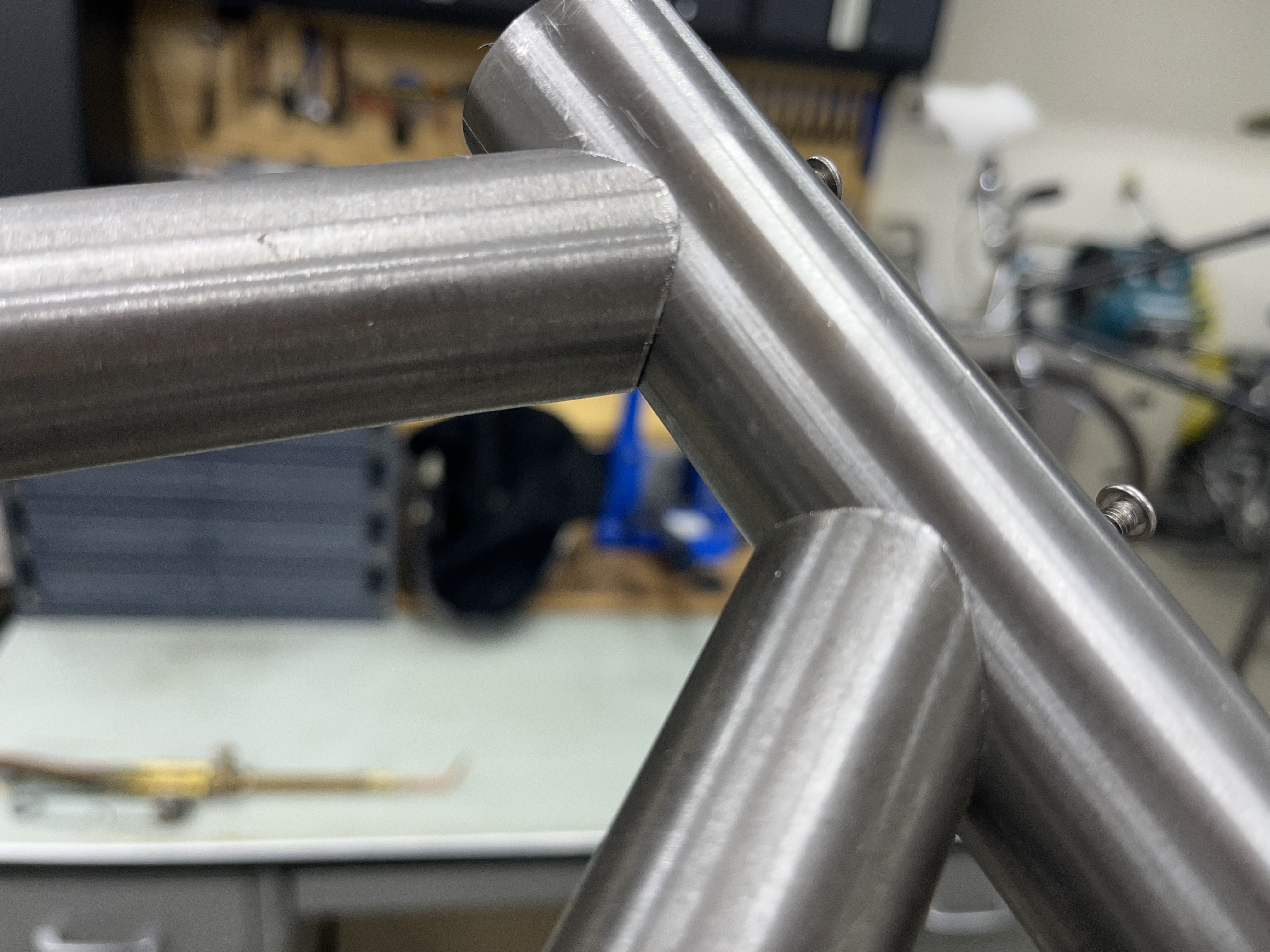

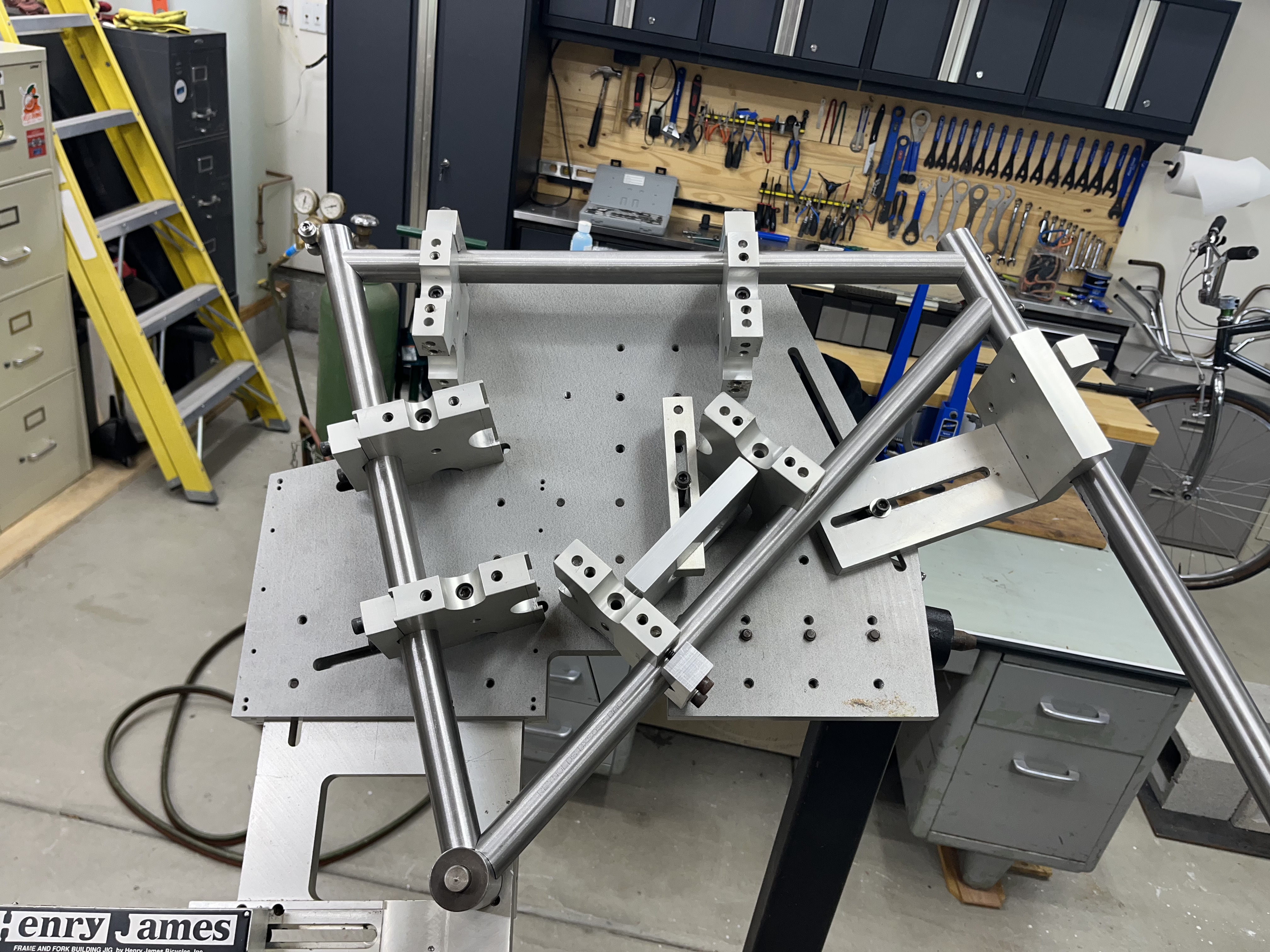

Main triangle mitered. Onto the rear triangle, which on previous builds has challenged me much more than the front. The headtube looks like a crazy angle, but it’s optical illusion.

4 Likes

Nice miters. Weld or braze?

TIG weld. Hopefully all goes well. Blew a hole in my last frame. Went up to 9-6-9 tubing on this one for a little more cushion.

3 Likes

Good luck. I’m sure it will be fine. Be extra careful at the place where the DT joins the ST. Both tubes are only 0.9 there (everywhere else, one of the tubes is thicker), and you have a very small gap, which is manageable, but makes it a little harder. Gotta be johnny-on-the-spot with the filler rod and get right out of the pedal at the first whisker of a hint of any trouble.

2 Likes

Do you braze cable guides on tubes before or after welding/brazing tubes together? I’m inclined to braze cable guides after frame is built up, but I can see some benefits (and some risks) in brazing beforehand. Any suggestions?

I do it before since if I ruin a tube. It’s just a tube and not a frame.

1 Like

Touché

1 Like

I used to do it after, because I was less confident in my welding and didn’t want to waste the effort of brazing if I blew a hole in a tube during welding. But now I do it before just for easier access.

3 Likes

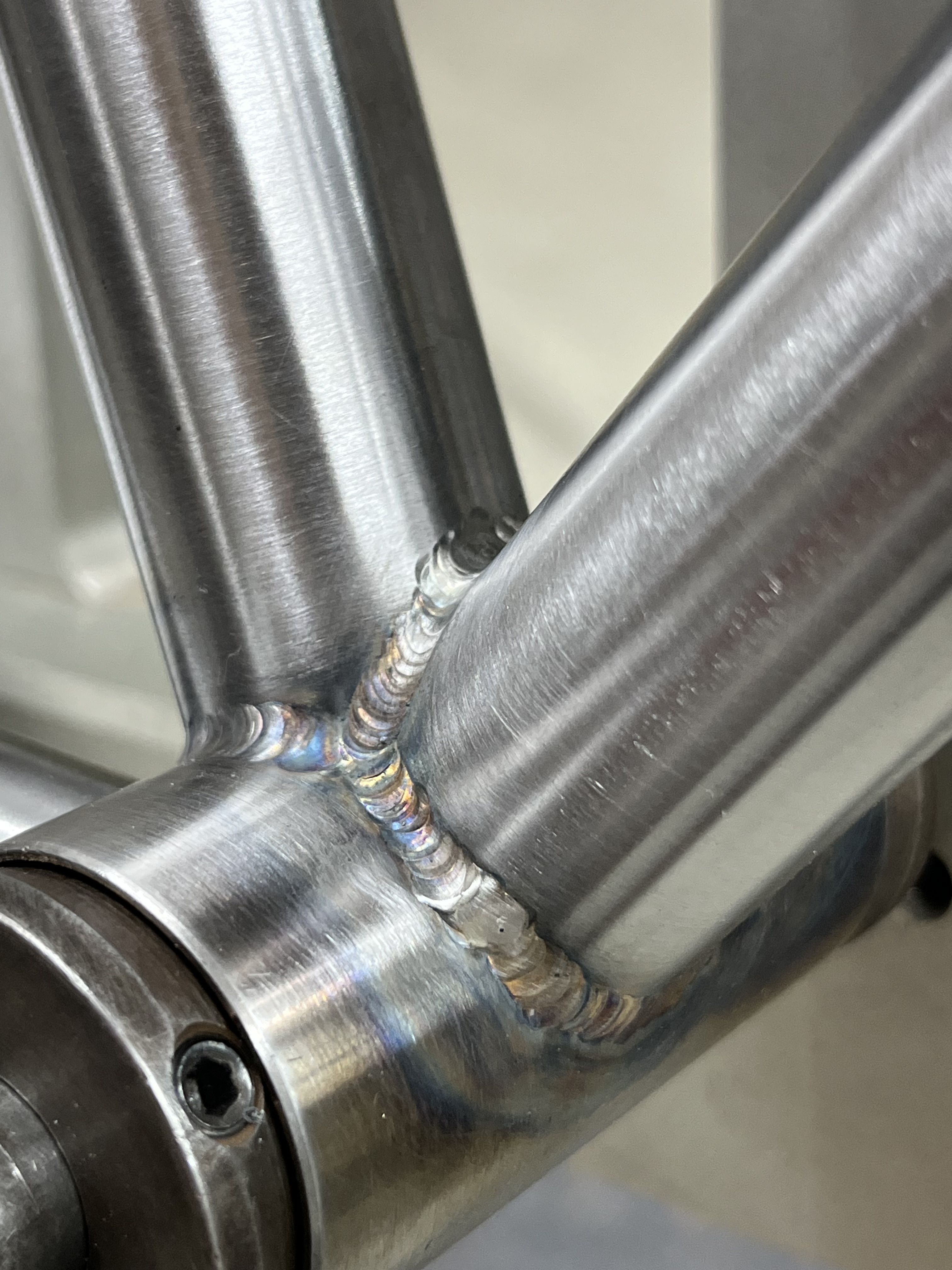

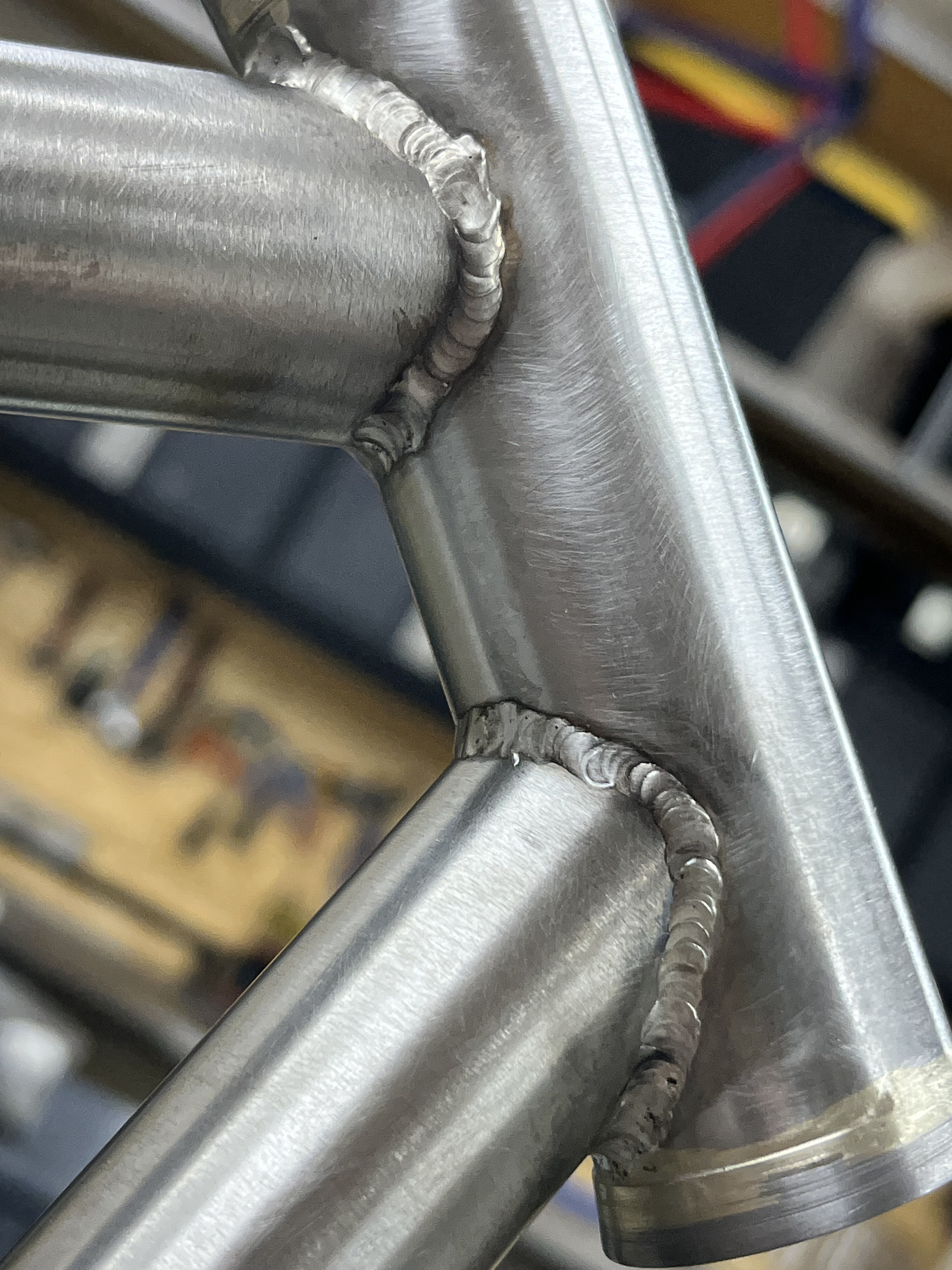

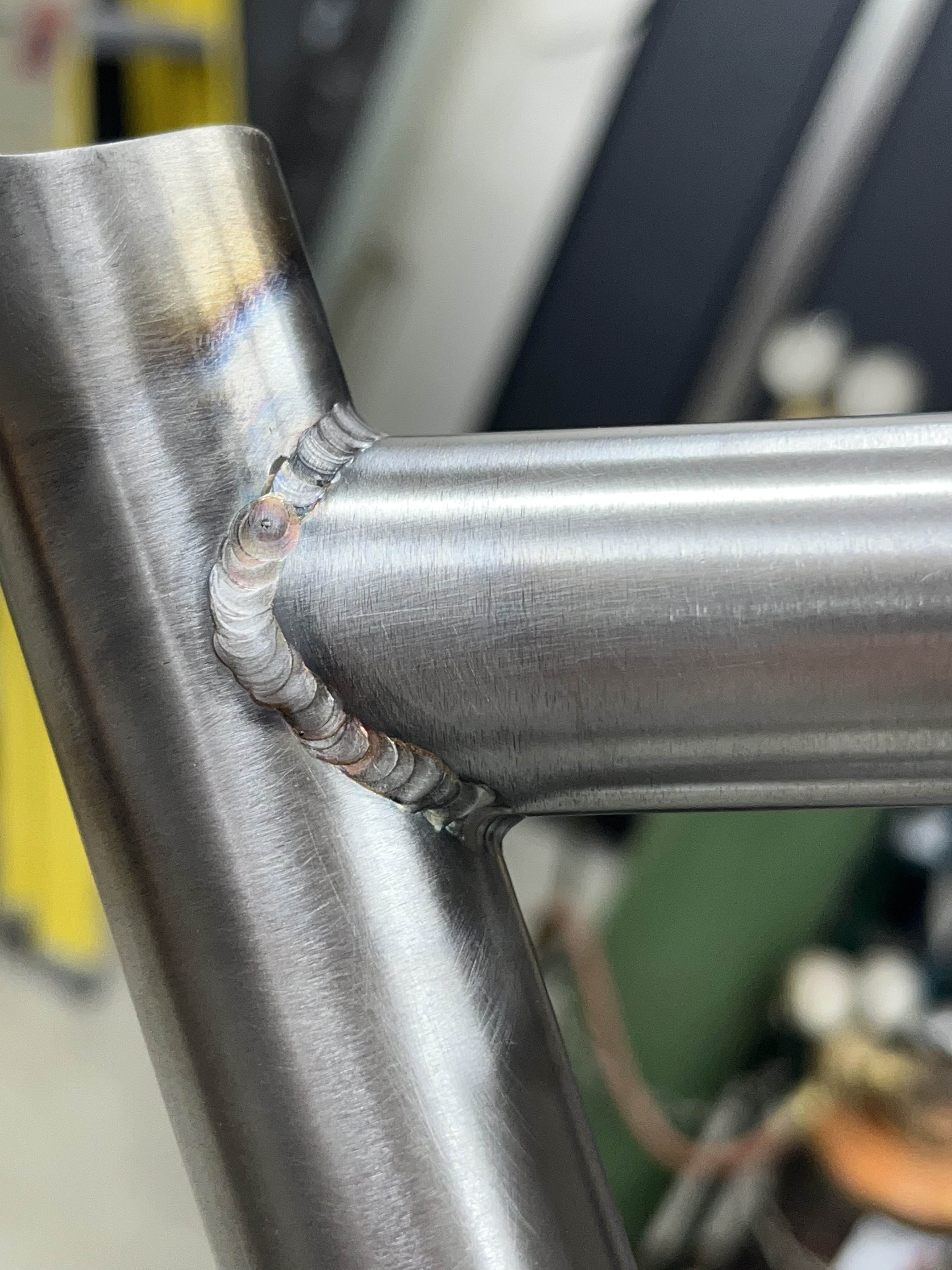

Not the prettiest welds, but much prettier than they were on the last frae.

6 Likes

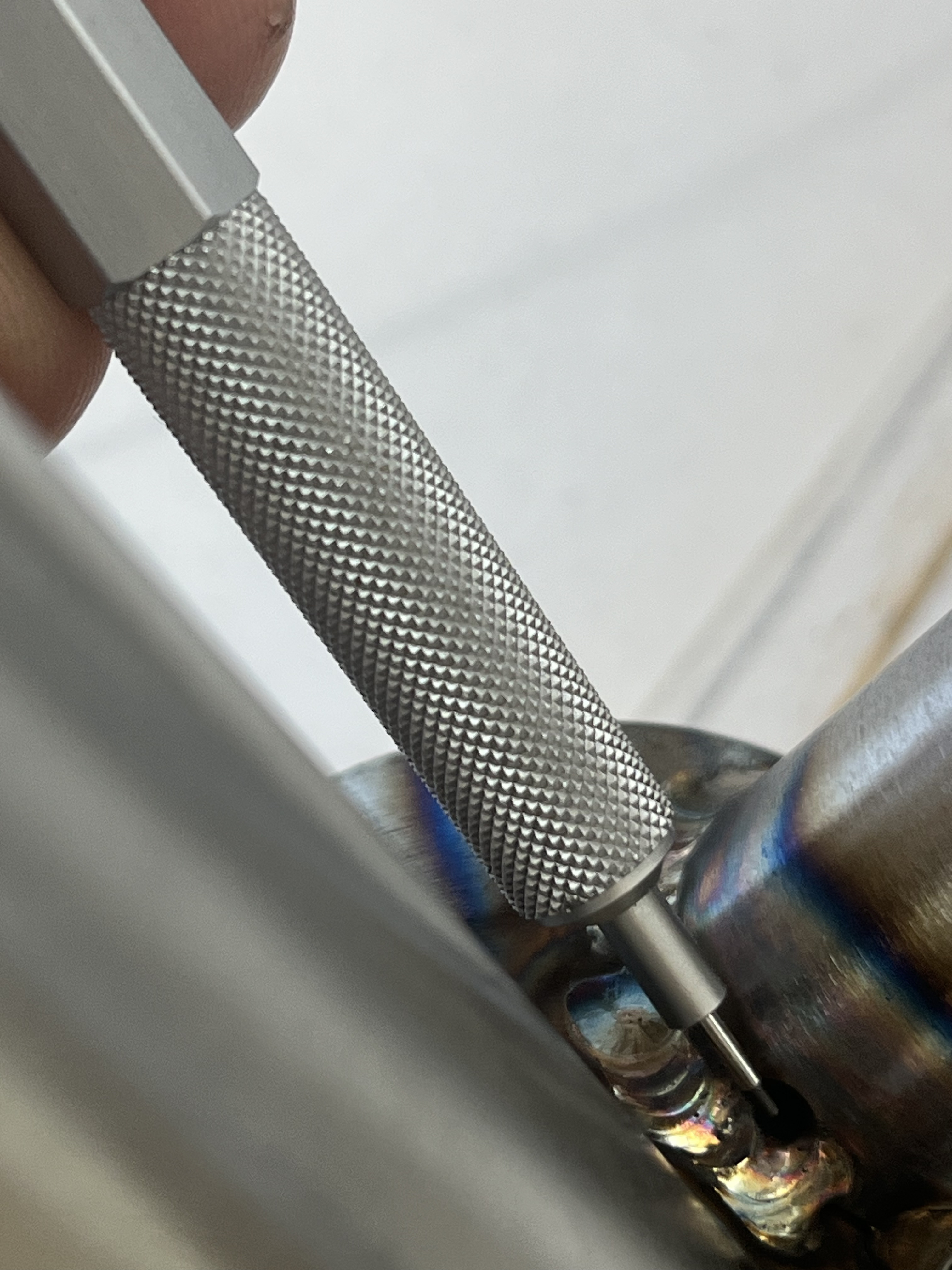

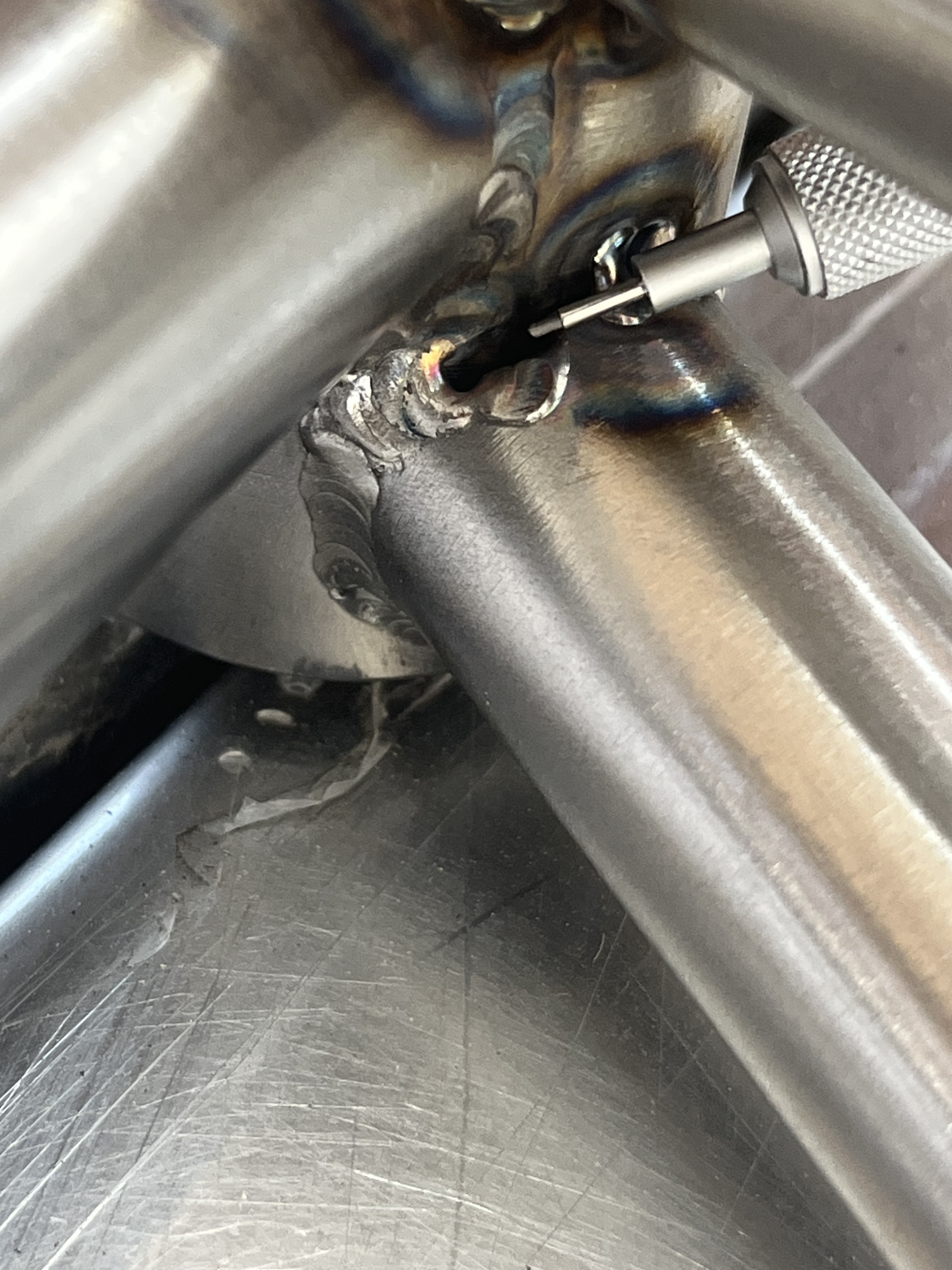

I blew a couple holes when welding chainstays to bb shell. I don’t feel confident I can attempt to fill these without making them worse. What should I do?

1 Like

The welds on the main triangle look fine. Well done!

Those holes in the chainstay are salvageable.

First, if you had any issues with reaching things or gas coverage, make a cradle out of aluminium foil to go around the bottom of the CS, and use more stickout. Before you start welding, just run the gas into the area for a second or two.

Start the arc on anything thick (the existing weld where on the BB shell is probably the best). Be super sure it does start there by holding the tungsten really close to it before you hit the pedal. The arc hitting the thin edge can start to blow it out almost immediately.

Then dip just enough rod (use the thinnest rod you have, I’m assuming 1mm) that it sticks to the weld you already have. Very gently start to build up weld around the ends of that hole first. Only ever point the arc at what you’re building up, not at the edge itself, and always be ready to get rod in there. As soon as you’ve made a blob stick nudge it in the direction you want and get right out of the pedal. Take your time. Let it cool a bit every now and then.

Don’t worry if it looks lumpier than an elephant’s foot. Your goal right now is just to fill the hole. That will inevitably mean piling more metal on top of it.

If at any point the hole starts growing jump off the pedal like it bit you and wait a good 30s before trying again.

Once the hole is closed, you can carefully go over the lumps with the torch again to try to smooth things out a bit. You can even pulse it for some fake dimes (but who are we kidding). But the priority is to have enough metal there.

Finally you can tidy it up as best you can with a carbide burr in a Dremel. Then paint it and never speak of it again.

If in doubt, practice all this first. Weld one of the off-cuts from your chainstays, or something of similar thickness, to a bit of pipe. Make holes and then try to fill them in.

Another option if you’re really struggling and have any of that TIG brazing rod (silicon bronze) is to use that. It will be easier to fill the hole with because it melts at a lower temperature and is naturally quite “filletty”. Although it has less strength than steel it will be fine because the fillet will be quite big. If that works well for you you could even run it over the top of the rest of the weld so it looks like it was meant to be like that :slight_smile:

Finally if all else fails you can always just cut the whole chainstays off, sand back to the BB shell as if they were never there, and modify your design to use shorter ones, or just buy some new ones.

To make sure it doesn’t happen again the advice is:

  1. Make sure you can see and reach what you’re doing
  2. Always start on the thicker tube and roll towards the thin one carefully
  3. Good fit up makes it much easier
3 Likes

DUDE. Thank you! :crossed_fingers:

2 Likes

It’s replies like this that make this forum such a great place!

2 Likes

If I silver solder this seatstay yoke will it hold? Or better to TIG?

1 Like

It will be fine if you silver braze it.

2 Likes

I would TIG it. But mainly because I suck at silver soldering. But it will be much easier if you break those tacks we can see and weld the subassembly out on the bench.
