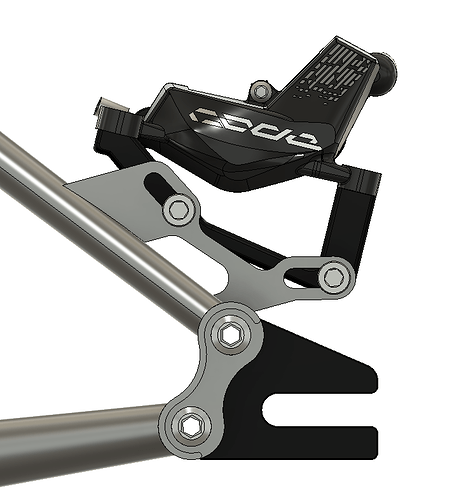

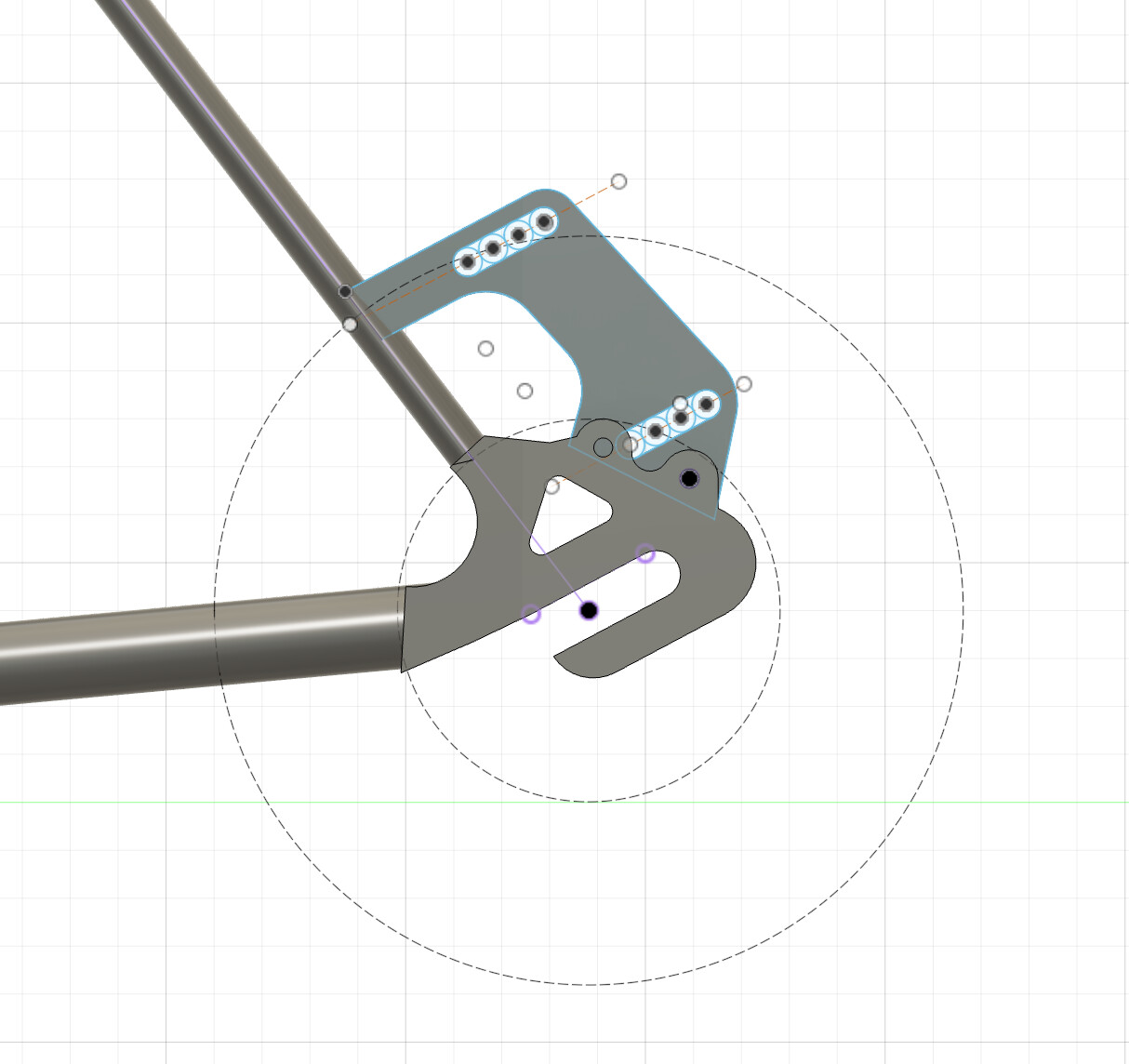

I have a Shimano Nexus 8 internally geared hub wheel (Shimano centerlock disc compatible) that I’m planning to use on a cargo bike build. I have an old steel MTB frame with sliding dropouts, but no disc mount. I designed the above sliding disc mount to work with the existing dropouts and I was planning to have it laser cut at Send-Cut-Send along with a few other bits I need, but I’m not sure it’s worth the effort. I mean, v-brakes work pretty well and I have the post mounts already. The front fork I’m using has posts and a disc mount. I live in SoCal and I don’t ride during the rare rains. Thoughts?
2 Likes
Personally for a cargo bike I would never consider rim brakes.
Sure they can have plenty of power but I dunno a good strong 4-pot with a properly sized extra thick rotor just inspires a lot more confidence with a big heavy bike carrying sometimes big heavy stuff. Finer modulation and more heat capacity etc.
Take my opinion however you want I’m no expert lol I just really strongly prefer disc brakes in applications that demand a lot from brakes.
1 Like
Yeah, you’re right! Guess I’d better get really good at TIG!
1 Like

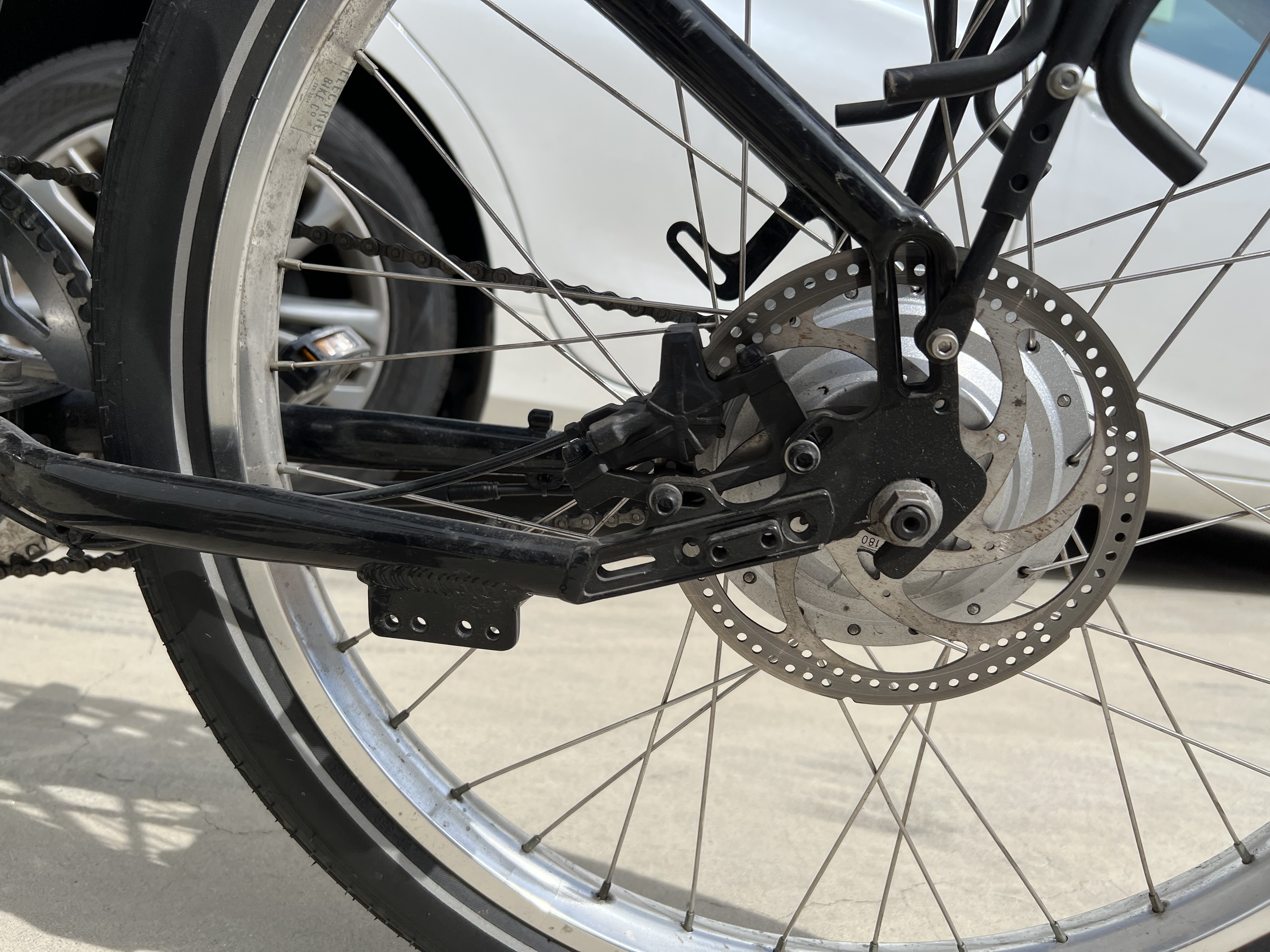

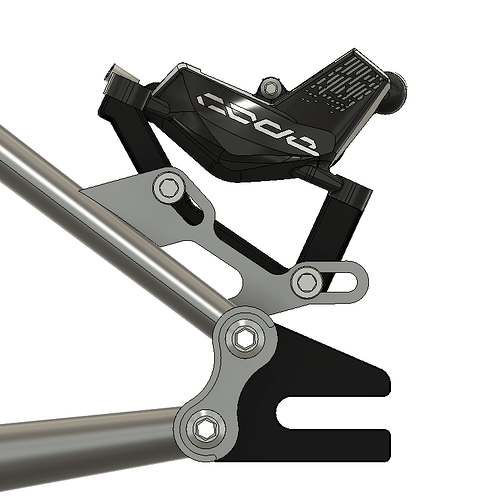

I’ve designed an IS mount for sliding dropouts. If you have both the slots parallel, the caliper can hit the upper IS mount slot. It’s probably a good idea to angle the upper slot. I’ve got CAD files I can share if you want, but you can also probably get it figured out pretty easily.
[/quote]
3 Likes
Oh I see! Guess I’ll need to have the brake caliper and disc on hand to really figure it out. Just use CAD (Cardboard Aided Design) to dial it in.
1 Like
If you’re going to laser cut your dropouts, you could integrate the IS mounts into the dropout. Then you don’t even need a jig to set them up.
Edit: didn’t read that you’re using existing dropouts.
Also, IS mounts work kinda like post. A rear IS mount using a +20 spacer is 160 rotor. But a front IS mount using a +20 spacer is 180 rotor. It might give you a little bit more room to just plan on using the front mount standard in the rear and spec the rotor accordingly.
3 Likes
It’s worth looking at the Shimano BMX disc brake spec. You can locate the caliper where the wheel can slide back and forth enough without having to move the caliper.
5 Likes
I would replace the whole dropout with one that has integrated IS mounts, if you can make your own even better!
2 Likes
That’s a great idea! I also thought of just getting the chain tension correct, the caliper aligned, and just sending it with a standard mount! I don’t plan on switching up the gearing and if I do I can grab some half links or something.
Like these? BFS-C25 PLATE SLIDERS WITH SS FACES FOR DISC BRAKE PM SINGLE SPEED - 10 MM AXLE — BICYCLE FABRICATION SUPPLY
Those work, PWM also has some options and I do believe there is an horizontal dropout with IS tabs somewhere as well, or you could design one via SCS.
If you do make one based off a tab design, you could un-braze your original dropouts and maybe swap them out for the new one without the need for too much work, you would need a dummy axle or at least a sacrificial rear hub to keep them aligned while you braze/weld them
2 Likes
Yeah, you’re right, this is the best solution and not any more difficult than trying to cut/grind/weld/braze on the existing dropouts!
1 Like
Any idea where one would track down that spec?
It’s in the Shimano frame fit specifications under BMX
