Yup, on a pedestal grinder
1 Like
@mark_pmw what did you get me into?
2 Likes
6 Likes
Well in Lemond’s defense, they don’t have to conform to stringent maritime regulations.

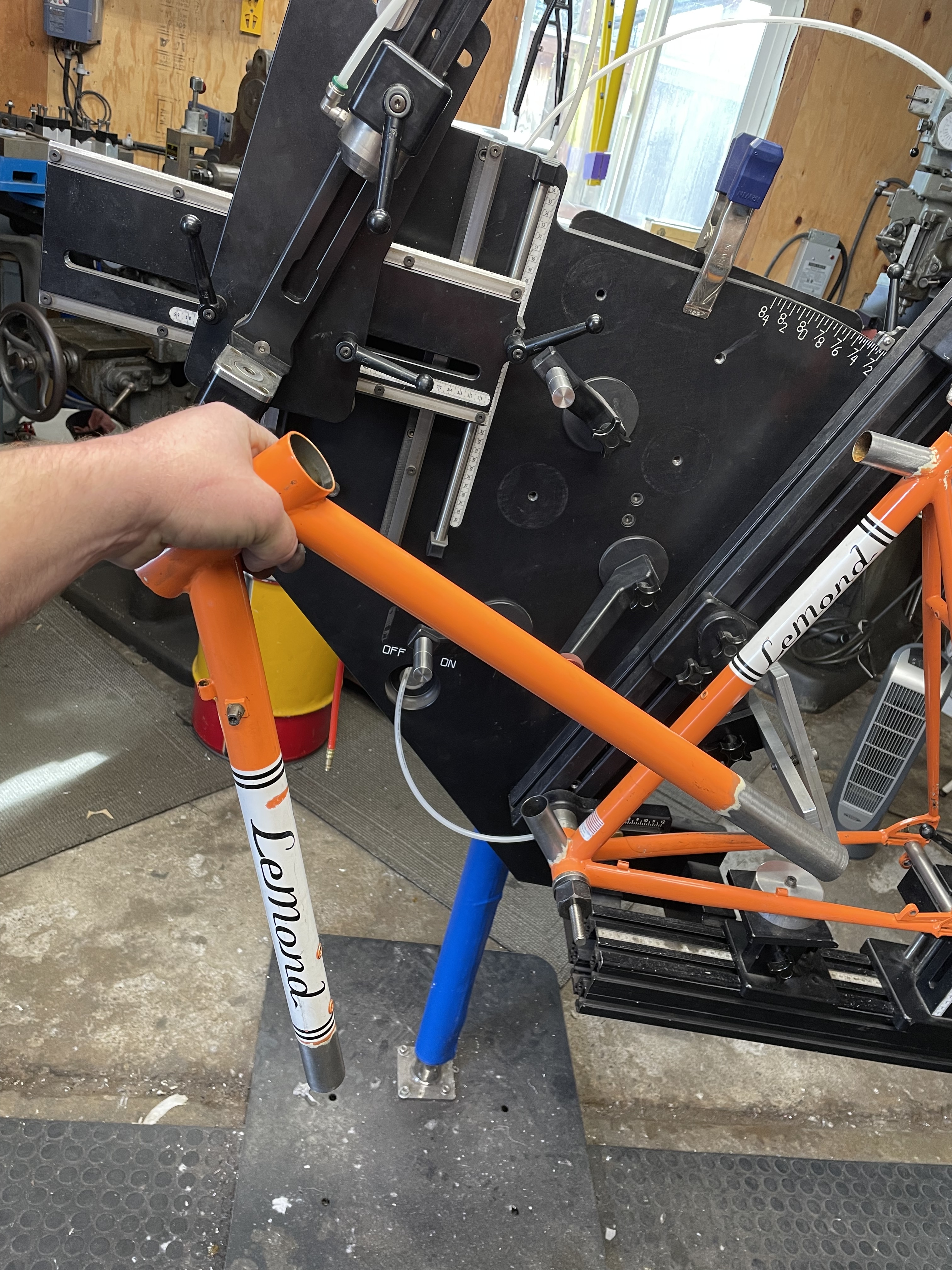

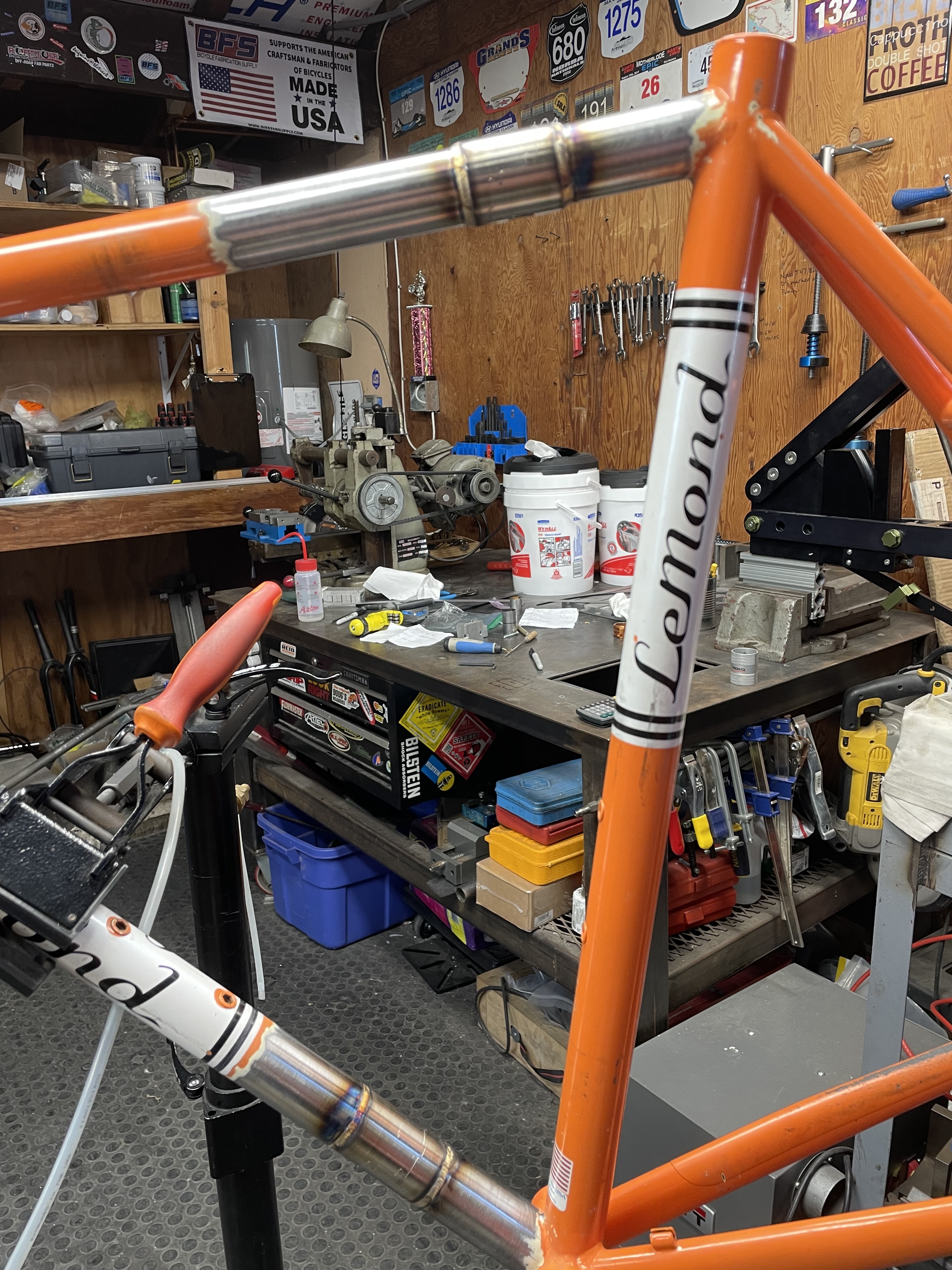

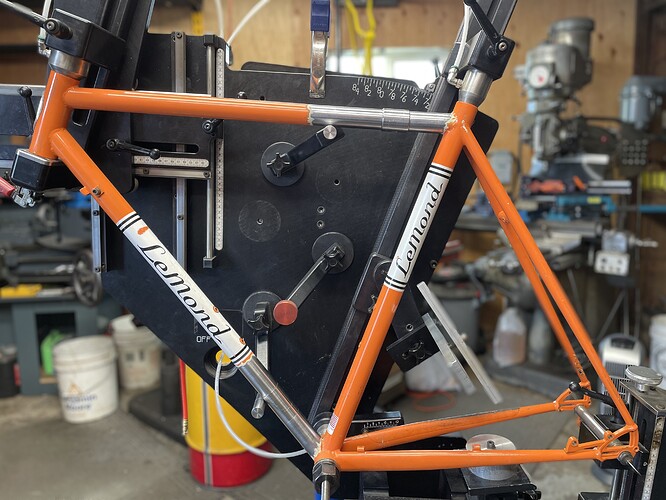

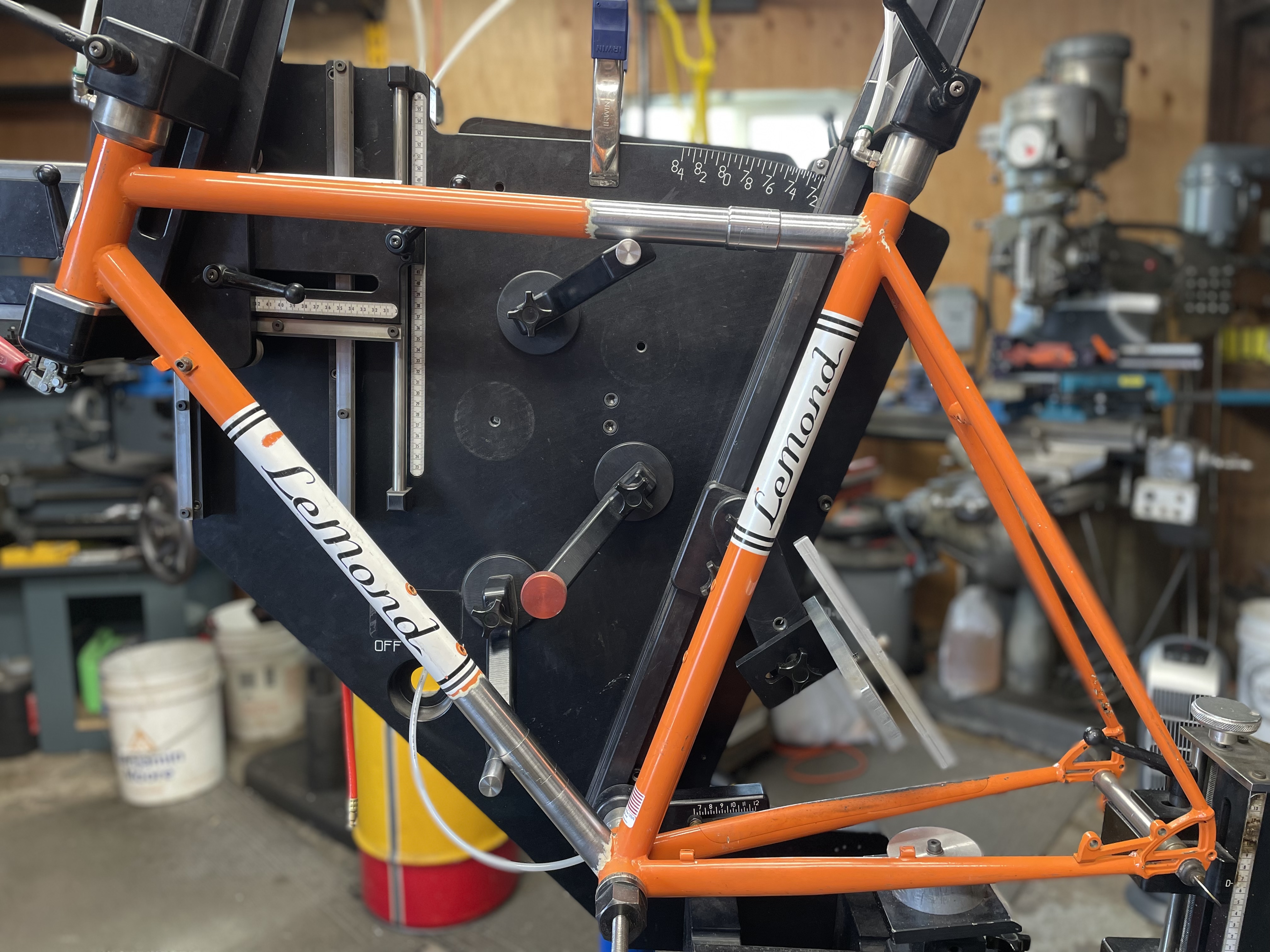

Also, the front is now officially back on.
7 Likes
1 Like
Nice work! You have a new career wrecking old frames.
5 Likes
I’ll add that to my resume right under “wrecking new frames”
5 Likes

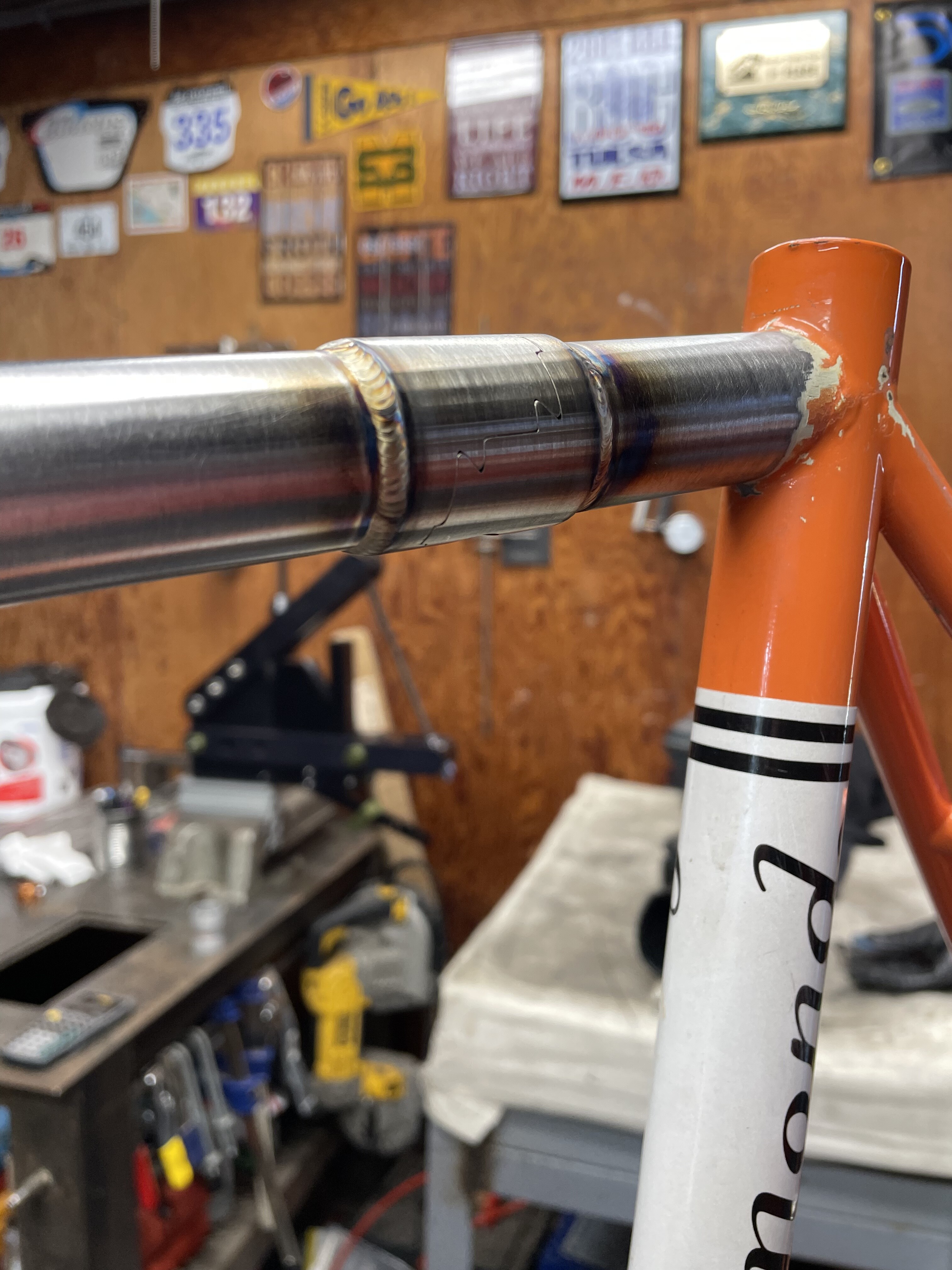

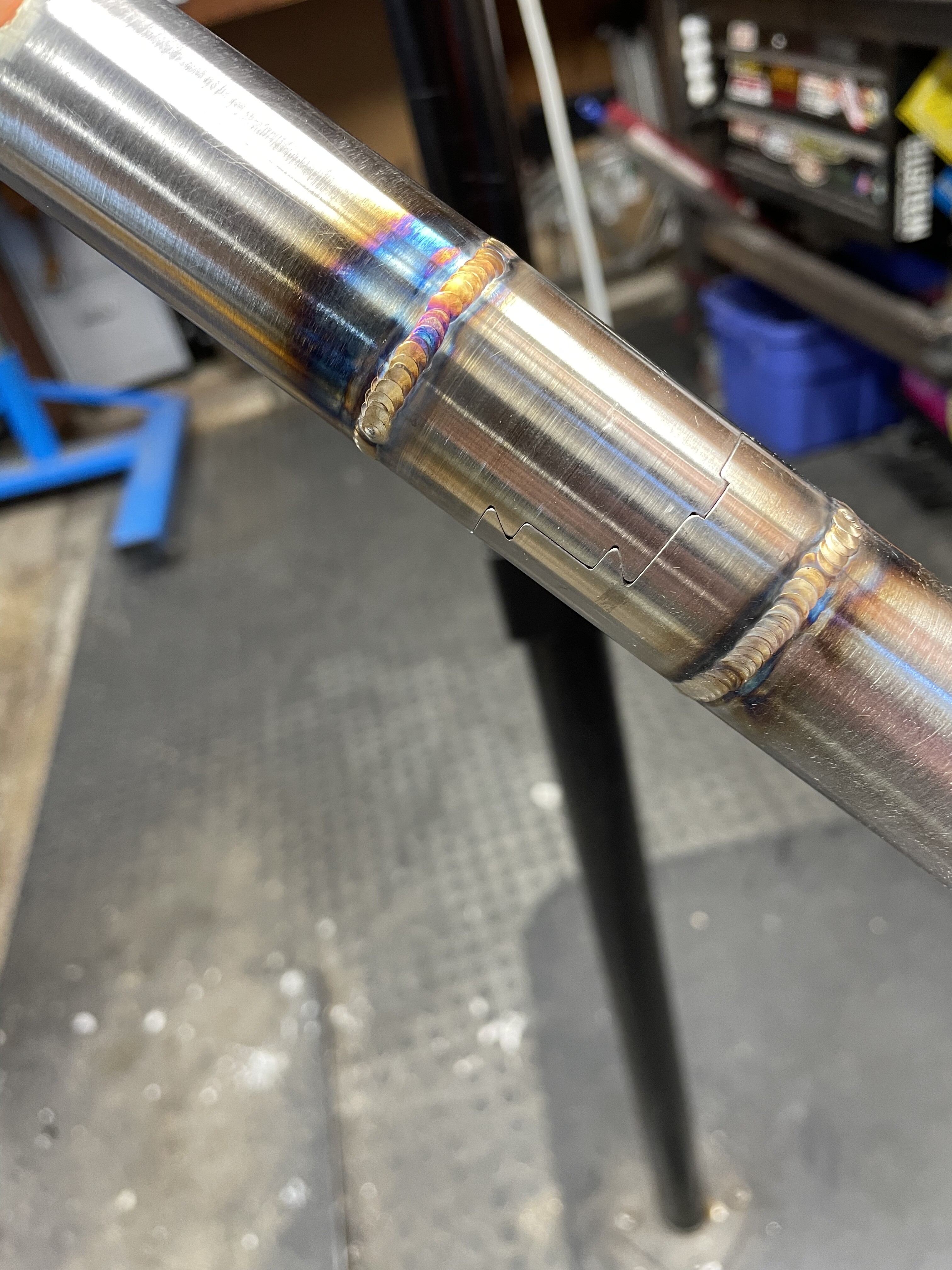

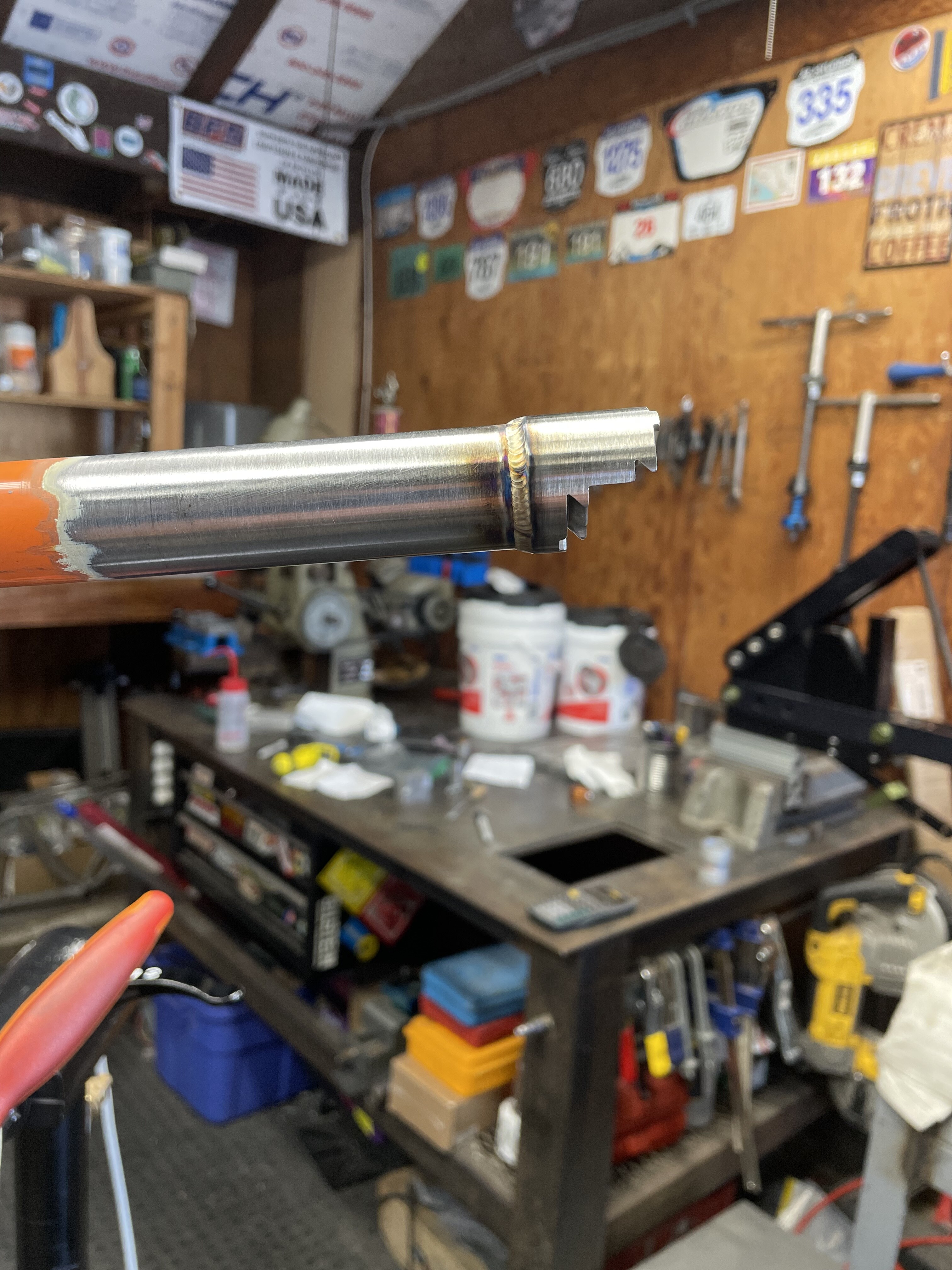

I have the SS couplers in my specialized but the Z-couplers are sooo much smoother… Great work!
1 Like
What lathe is that? I don’t recognize it.
Also loving that little bench-top mill-drill!
-Jim G
It is an Enco 13x40 gunsmithing lathe.
1 Like
Been a bit quiet here, mostly because I have been crazy busy working through customer builds and getting ready for MADE.

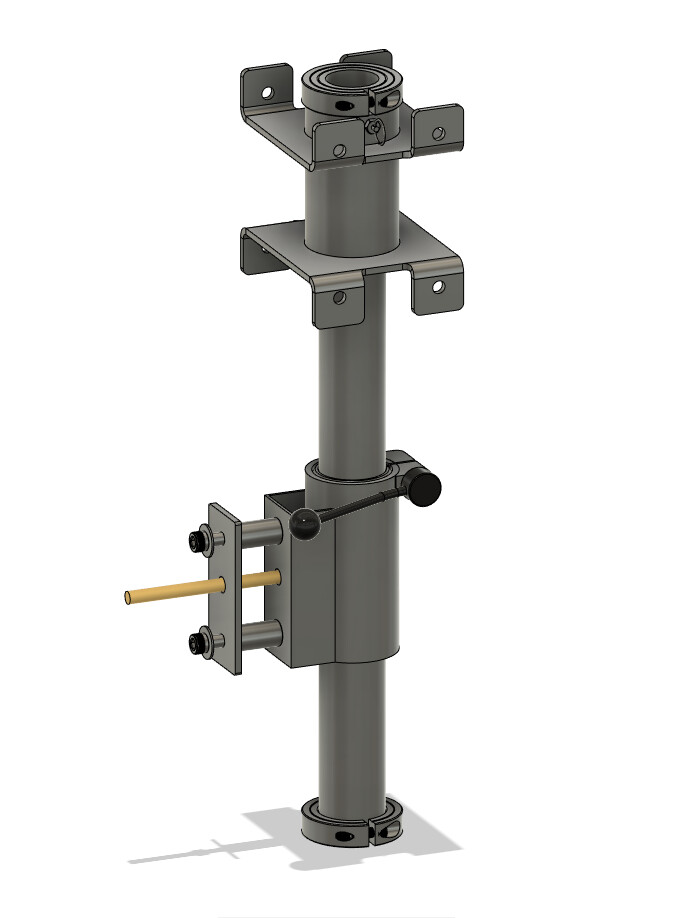

With a move to a new and much larger shop just around the corner it was time to stop procrastinating and finally design my ne welding stand.
This is made to hold a Park Tools wall mount repair stand, the brass rod will be attached to the clamp head which will have a braided ground strap run through the jaws. the area between the spacers will fit my ground clamp and allow the brass rod and clamp head to rotate freely without moving the lead. The entire assembly will slide up and down as well as pivot around the main shaft which with a spring assist will retract up into the ceiling when not in use. This will allow the floor of the welding booth to be completely free of any obstructions.
6 Likes
Ceiling mounted welding setup sounds awesome, now I’m thinking of how I can mount my park stand overhead. Would love to see pictures of that setup once you get it going, congrats on the new shop space!
I have a Farr chainstay jig. Can I see not pics of the BB part to do the assembly? I want to try new frames that way

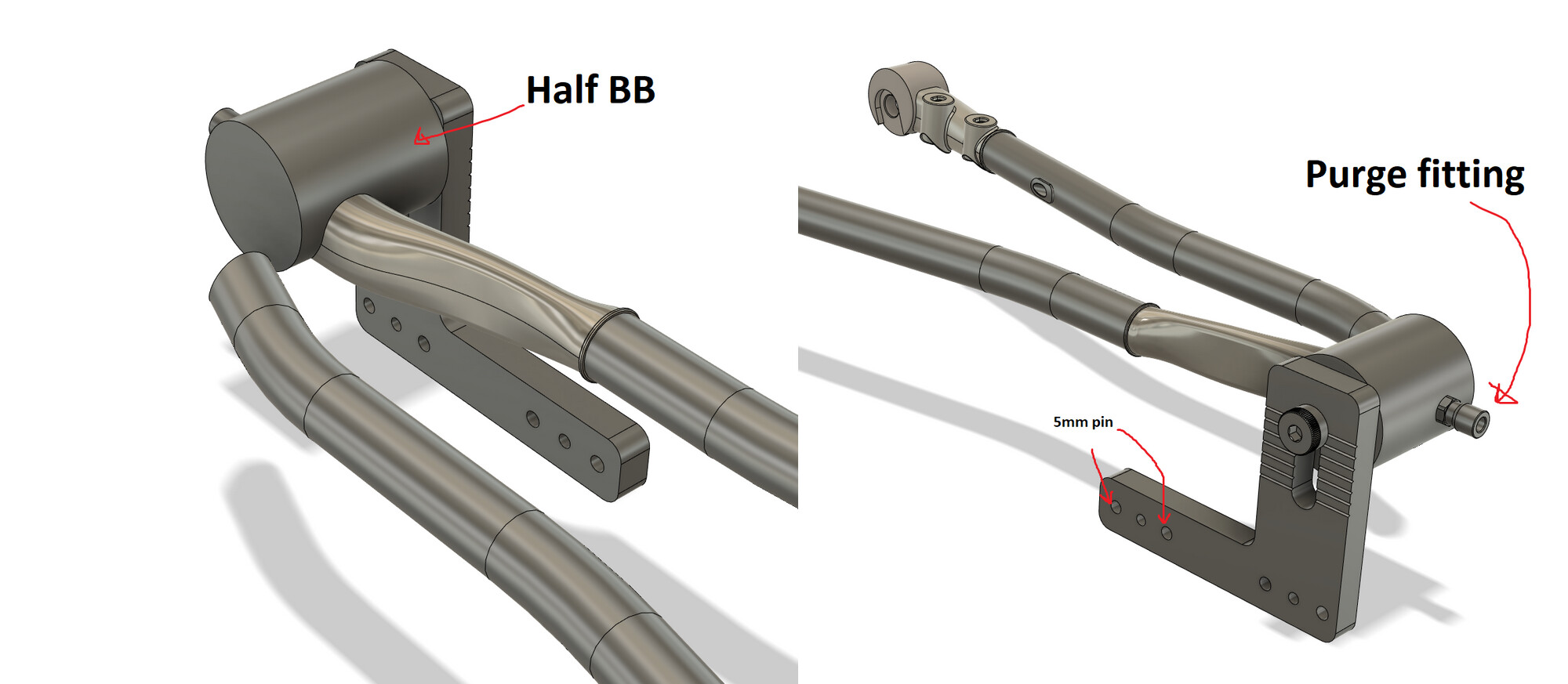

Remind me to revisit this thread, I just got some CNC bits to retrofit the FARR fixture with a BB dummy to fixture modern CS yokes:
I still need to test and revise the design, but I am heading off to MADE!
4 Likes
Will do. Thank you.
Have fun. I wish I was going. Next year for sure
1 Like
I wish that were me! Those chocolates are famous and absolutely delicious.
2 Likes
Good thing I did not go in and ask for you and Dan……
4 Likes
This would be a real nice upgrade! How much did cost for the machining?
1 Like
These were the prices I paid per part. Keep in mind, everything was a qty of 3, so it may be more expensive if you did a one-off.
- Tower (the machined piece) : $44.44
- Short BB dummy: $44.44
- long BB dummy: $66.67
- Shipping: $45
Pretty good all things considered. You could probably save money if you machined your own BB dummies. I was lazy
