Planning my first frame. Please check it out and give feedback. Evolved to build log

I’ve been using the 2.5wt Ohlins rear shock oil in Ohlins forks and Fox recommended oils in Fox forks.

1 Like

I’m a big fan of the Fox gold suspension fluid, I use it on all my RS and Intend forks, it’s a bit sticky but that i the trick. It stays where it is needed for longer I guess :wink:

3 Likes

Yes, that’s good stuff! I use the Fox Gold oil on the air side of Grip 2 forks.

2 Likes

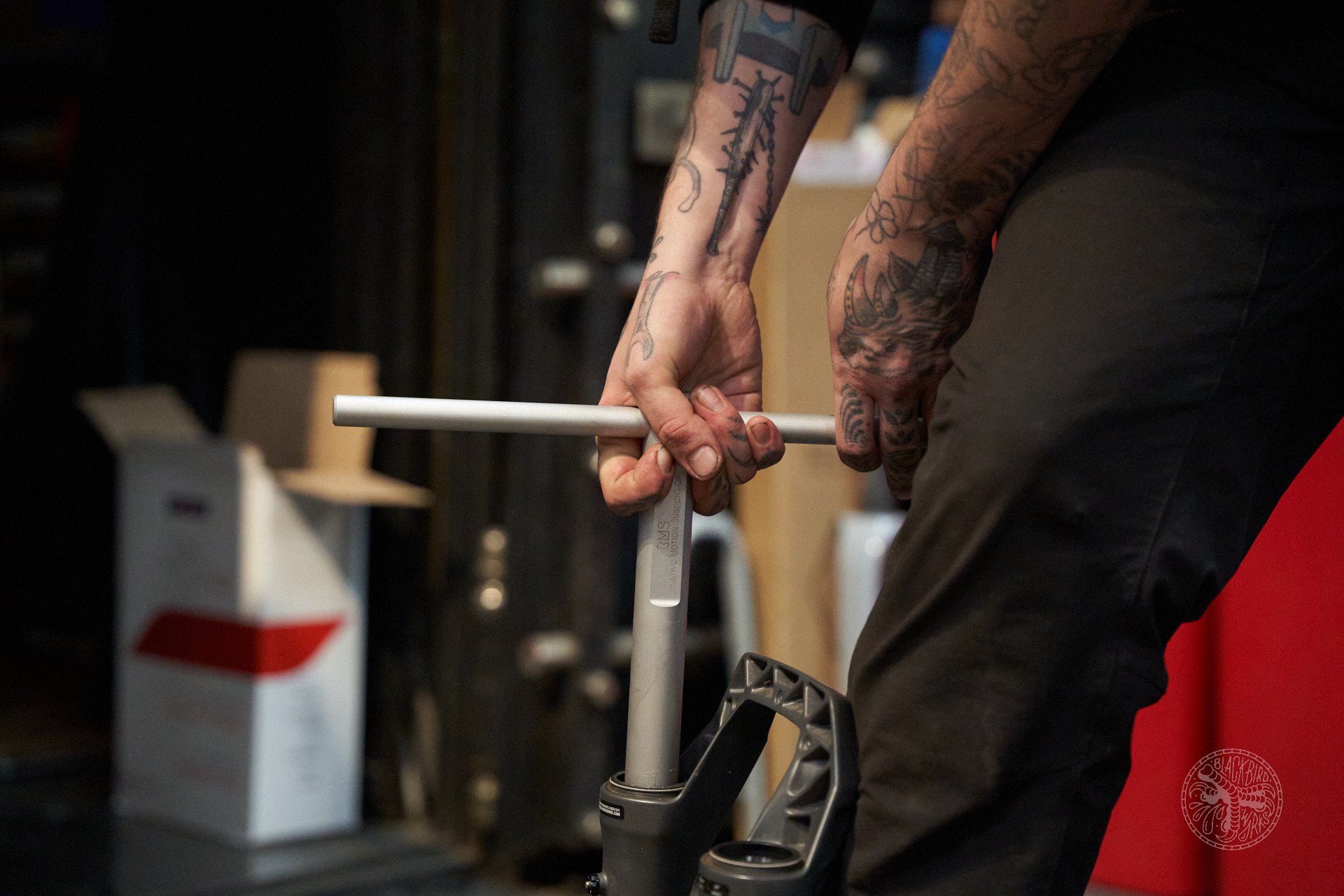

Fork burnishing. I learned something new today!

For those lurking:

This makes a lot of sense… For a $400 OEM fork, There is no way the bushings will be sized accurately and consistently.

Question about the “Ohlins style” threaded tool people are referring to: Do you turn the threaded rod and pull the burnishing tools through the bushing? Then somehow reverse the process to pull it back out?


1 Like

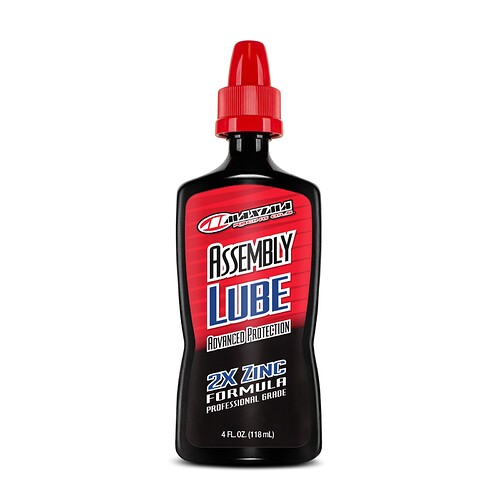

I can’t claim to be the biggest tinkerer, so I haven’t tried many alternatives, but ever since I read this review on Vital I’ve been mixing some Maxima Assembly Lube into 30wt suspension suspension fluid until the viscosity seems about right (it’s pretty thick) and using that as bath oil. It works well in fork lowers and it has virtually eliminated stiction in every air shock I’ve used it in when I add it to the air can to lubricate the main seal. Not sure if it’s easy to get ahold of in Europe but in the US it is relatively inexpensive and widely available.

2 Likes

Yes. You use a drill to feed the insert down into the lowers and then reverse the drill to back it out. It is fixed at the base of the lowers. That Ohlins tool also has parts to install and remove bushings.

3 Likes

I previously used Motorex supergliss 100K as per Shockcraft’s recommendation. Stuff is like honey.

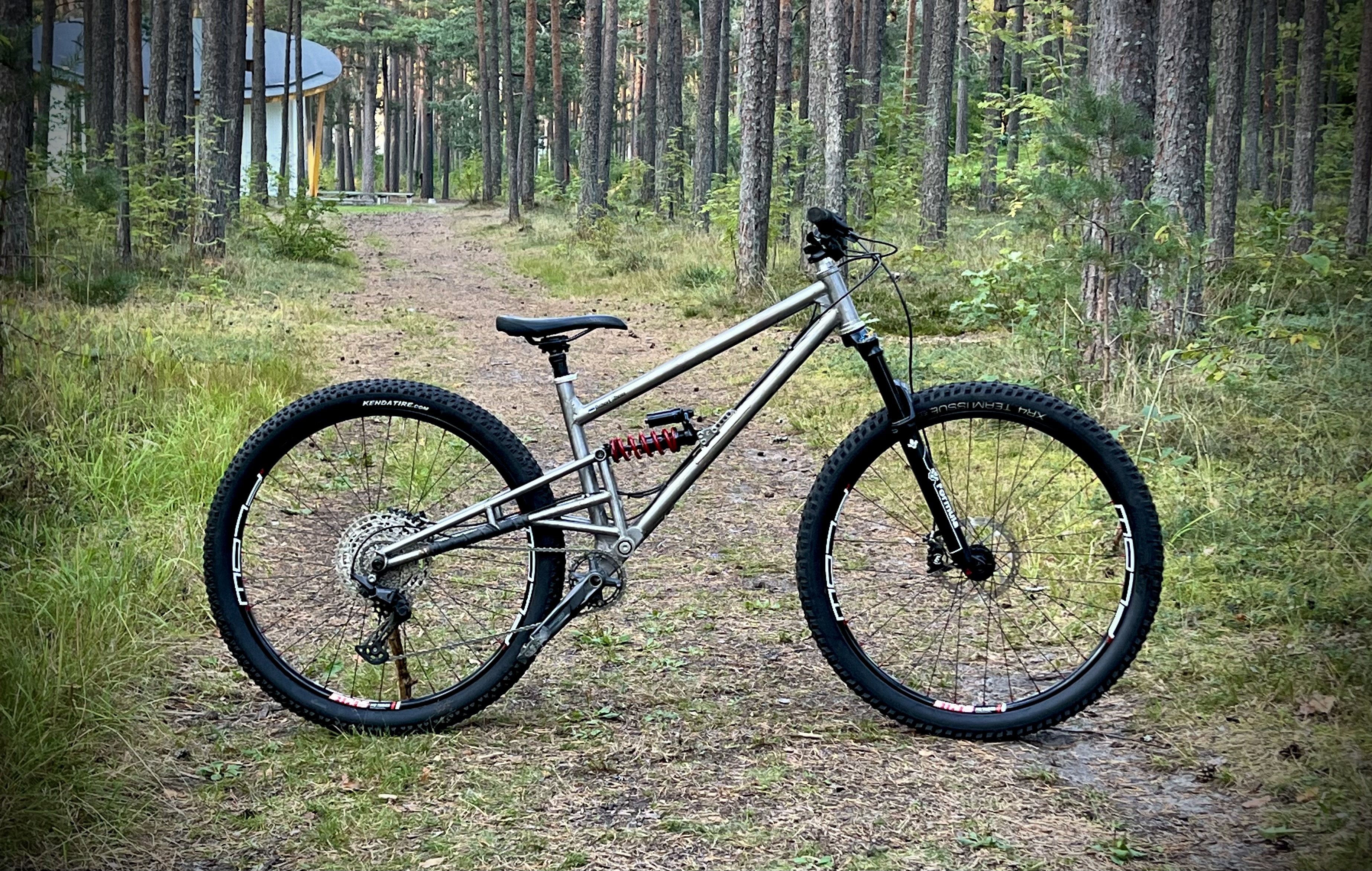

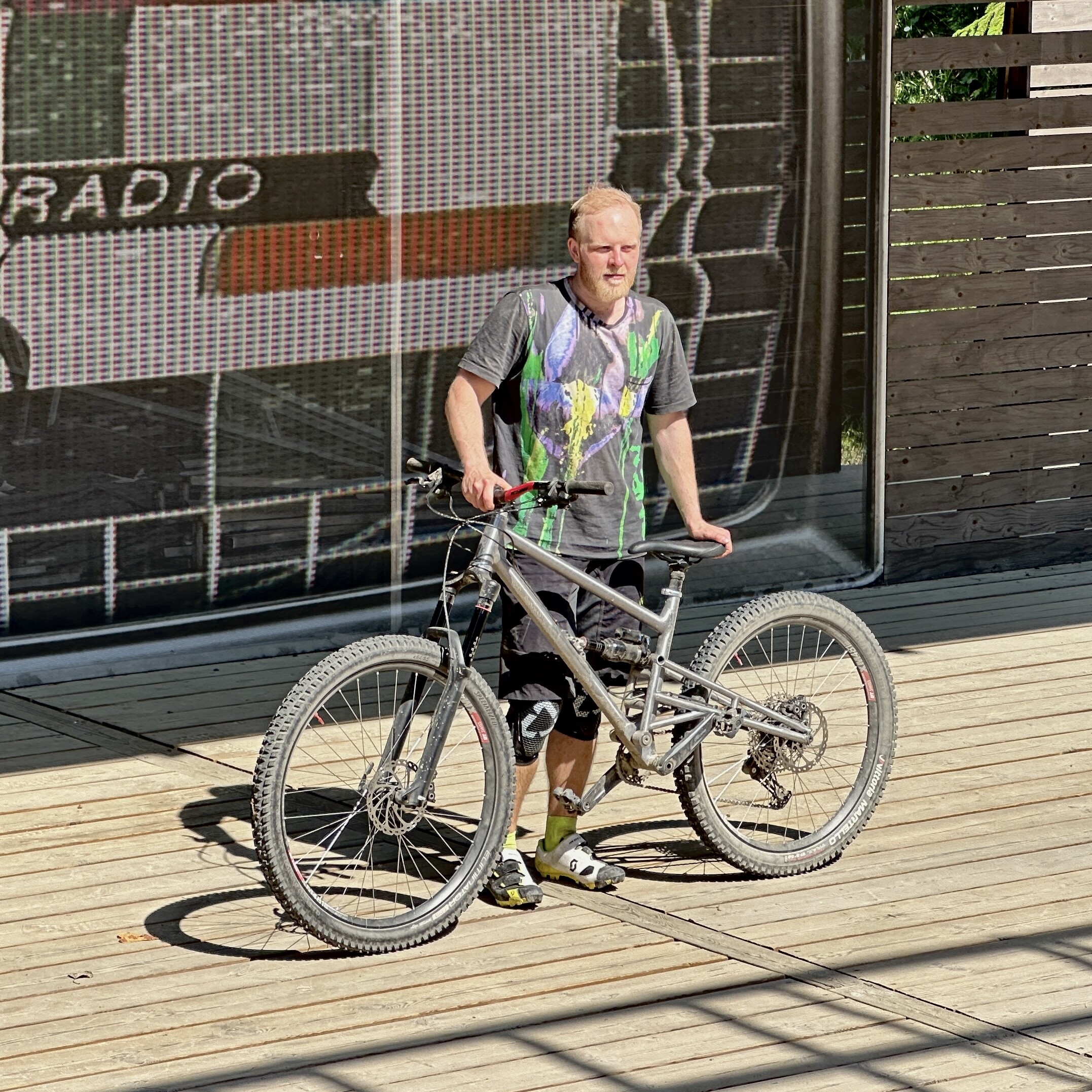

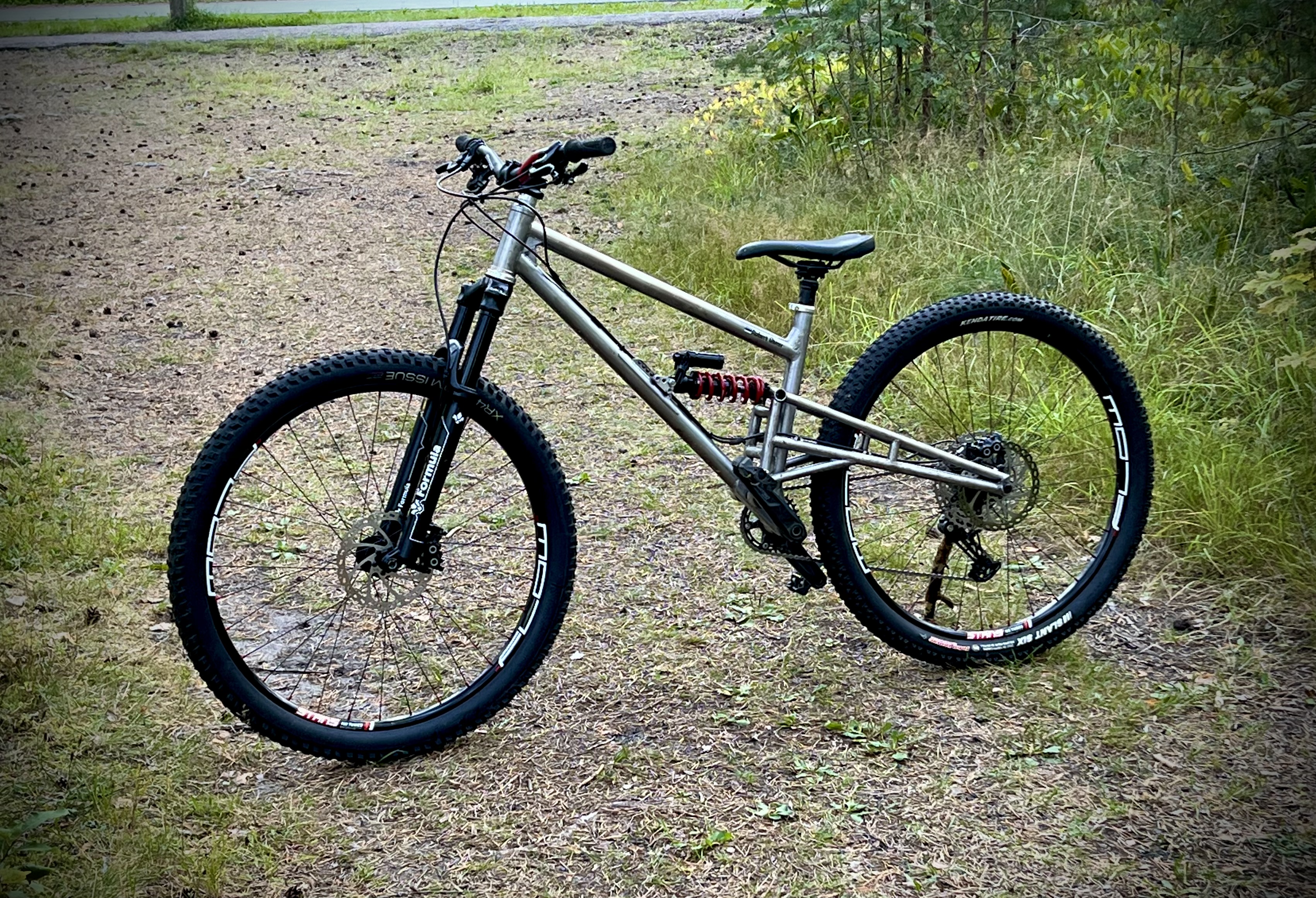

A few pictures and videos from bike park visit.




Feels good - no problems. Shock is maybe a touch stiff for more technical trails (I can make the fork softer than the shock), did not have too much time to play with tokens - maybe half a token less is golden or less pressure (I did re-valve it myself). Or I just need to go faster :shushing_face: But on flow tracks and landings it feels very good. Best turning FS I have ridden.

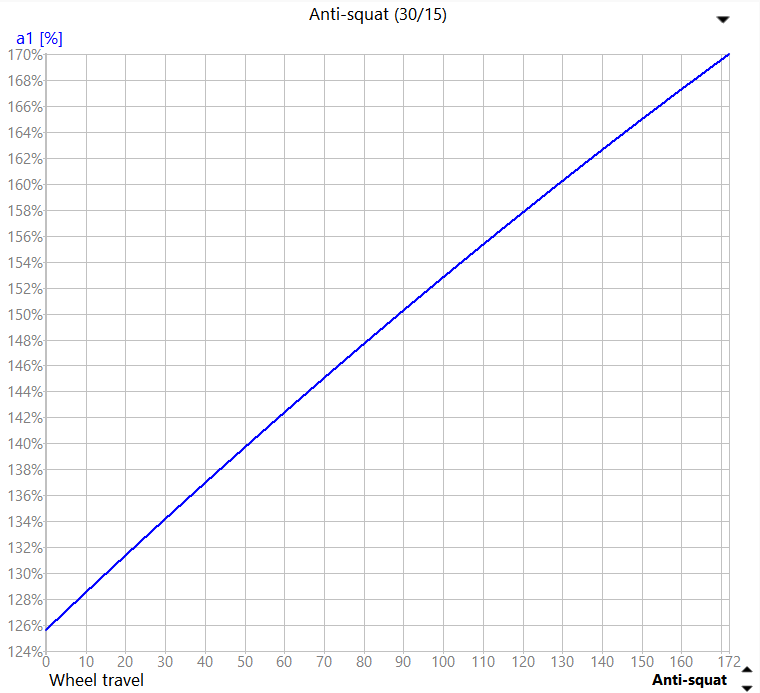

I have had problems with rear tire hang-up with some bikes, especially 27.5, but mine does not have this habit. I actually think it is mostly very low anti-squat that gives me trouble. When the rear tire hooks behind big hole/rock/root when braking, low anti-squat pushes my body forward more easily and it feels like going over the bars. Very tiring.

8 Likes

Awesome! You greased those table top jumps. That park looks very fun. This is all super impressive for a first build!

I have been experiencing this increasingly as well. I think metal bikes grip corners much better because of their flex. I noticed this on mountain bikes and (surprisingly) the road bikes I have built when comparing them back to back to production frames.

1 Like

Thanks. I didn’t know what to expect, but this bike does ride well. I gave it to a friend for a few laps, and he seemed to like it a lot. I must have done something right.

I know that my hardtail (Onza Payoff) turns incredibly on flow trails, and now my fs has the same feeling. You just lean it in, and it will hold a line. They have long chainstays and short reach, and yes they are steel.
My fs has a lot of mid-stroke support so that probably helps a lot.
Other bikes have always wanted some mid-turn corrections - maybe because not enought lsc, too short cs, not steel, too long reach, progressive leverage ratio?

Last bike I rode was size L Megatower in low position. Was amazing point and shoot bike. Very stable and ate everything, but was not nice to corner and awful for pedalling and pumping.
Mine has loads more support and is playful. Soon I’m going to Alps to ride the same tracks, will see how I will like my creation there. Probably more tiring, but fun.

About flex. I cant feel any flex. No rub anywhere. Harshest hits are more mellow compared to some bikes, but it depends a lot about all the other components. Maybe I just don’t feel it, but it is there and helps me carve corners and tires me less.

2 Likes

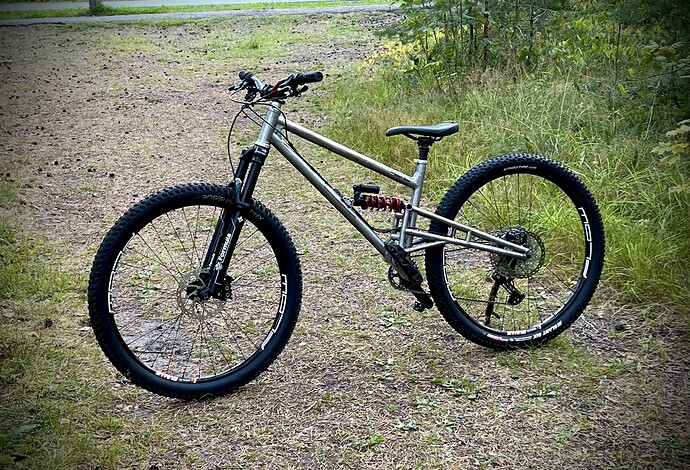

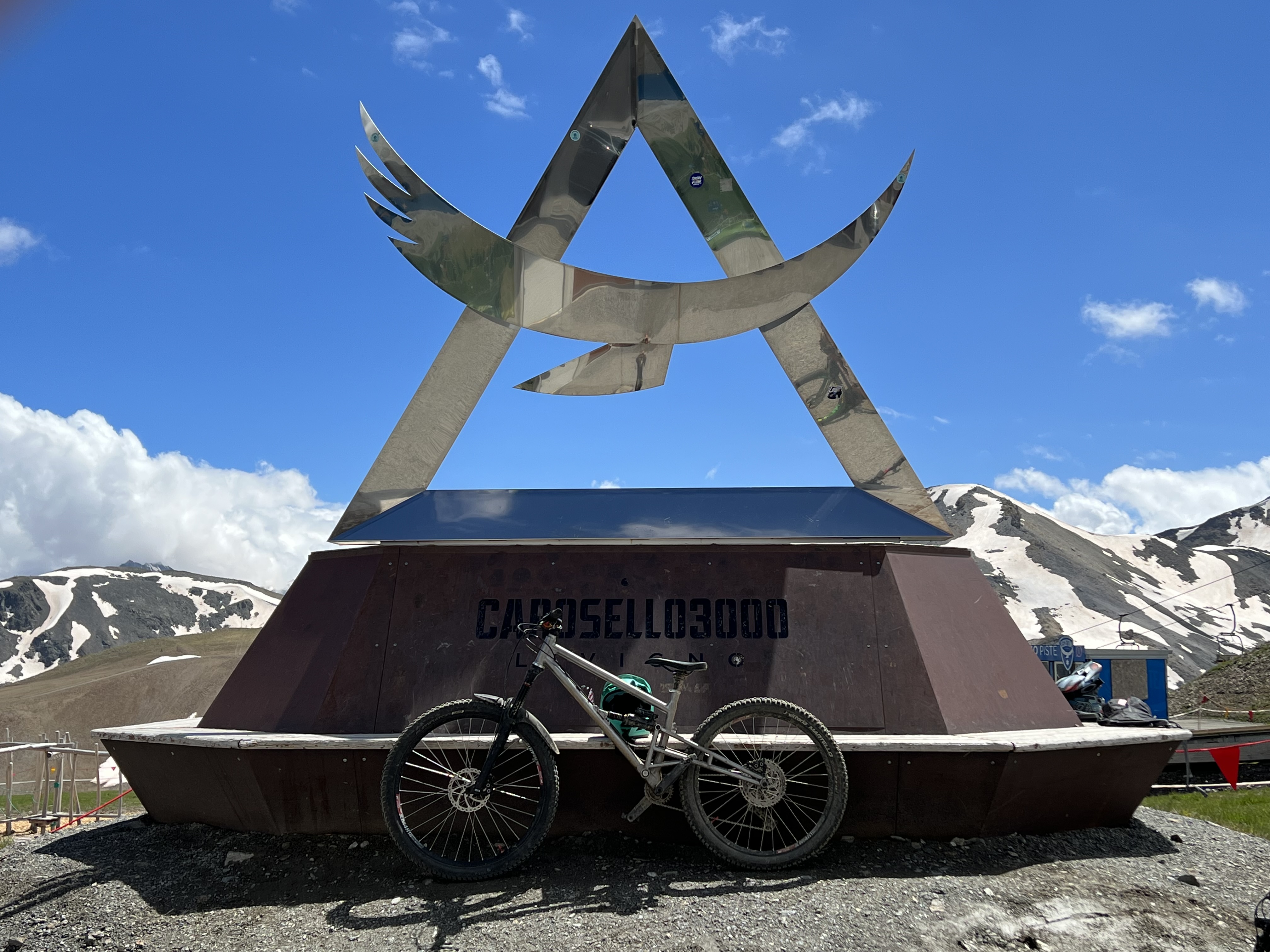

Back from trip to Livigno.
Bike was good, If I could change anything, then I would like a slightly longer reach.
Last year I was on Size L Megatower. Fork was better, But otherwise I can only praise my creation.

I did re valve my shock many times, and I think I have found a nice base-tune with Megneg.
This is my tune for 75kg naked and slightly regressive 2.6 leverage ratio.
180 psi
~32% sag
4 bands 3 tokens

Fork was not amazing. It is a Yari with MST comp cartridge and I have taken out 19x01 shim from rebound - it seems it is still too slow, so I need to make the ports bigger. Braking bumps in high G corners feel bad. And Id like less HSC.
I need to run a little too much pressure to keep it up, but it is a little bouncy and small bump is not very smooth because of that. On most tracks it was fine, but fox 38 fit4 was hugging ground better and no problems with braking bumps. I got some ideas, how to make it better.

Front tire needs to go to the bin (old Eliminator) - I was having problems with front end grip.

Some videos
